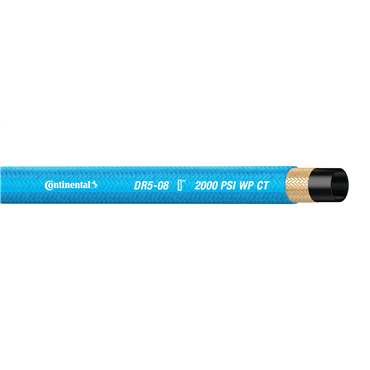

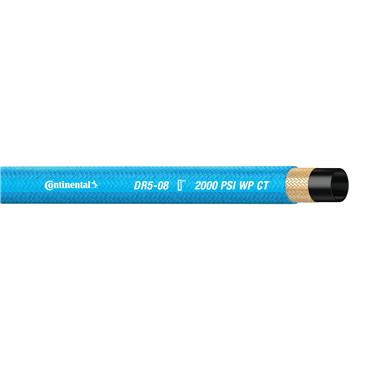

Chlorinated Polyethylene Blue 250 ft Hydraulic Hose

DR5-08X250RL

Chlorinated Polyethylene Blue 250 ft Hydraulic Hose
Item #101025055
  • 13/32 in Hose ID
  • 0.77 in Hose OD
  • 250 ft Hose Length
Chlorinated Polyethylene Blue 250 ft Hydraulic Hose
    Shipment Options
  • 13/32 in Hose ID
  • 0.77 in Hose OD
  • 250 ft Hose Length

description

  • Desert® DR5 is a high-temperature, medium-pressure hose for use in applications including turbocharger oil lines, tilt cab cylinder and air brake lines, transmission coolant and filtration lines. It is compatible with petroleum oil and phosphate ester–based hydraulic fluids, air, water, diesel fuel, petroleum-based lubricating oils and coolants.

features

  • High Temperature Rating
  • 4:1 Safety Factor
  • U.S. Coast Guard Certified
Hose I.D. 13/32 in
Working Pressure 2002 psi, 138 bar
Color Blue
Cover Material Impregnated Textile Braid
Hose OD 0.77 in, 19.6 mm
Burst Pressure [Min] 8000 psi
Temperature Range [Max] 302 °F
Tube Material CPE (Chlorinated Polyethylene)
Working Pressure [Max] 2,000 psi
Hose Length 250 ft
Bend Radius [Max] 4.5 in
Temperature Range [Min] -40 °F
Hose Reinforcement Braided Steel Wire
Inner Tube Material Chlorinated Polyethylene
Reinforcement 1 Layer, Braided, Textile and 1 Layer, Braided, Steel Wire
Weight 0.285 LB
EAN or UPC 37256452260
