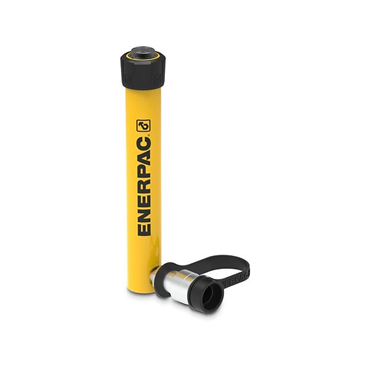

Single-Acting Hydraulic Cylinder

RC57

Single-Acting Hydraulic Cylinder
Item #112126246
  • 7 in Stroke
  • 1.5 in Outside Diameter
Single-Acting Hydraulic Cylinder
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 7 in Stroke
  • 1.5 in Outside Diameter

description

  • RC-TRIO Series Cylinders The next evolution of the legendary Enerpac RC-Series hydraulic cylinder. The driving force of the Enerpac cylinder range, the RC-TRIO is as versatile as ever. Featuring a Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity.New TRIO Bearing System

features

  • Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan.
  • Hardened composite material wear bands increase bearing surface area for greater sideload resistance - Significantly improving cylinder life.
  • New high-performance Polyethylene seals last longer than ever, improving lifespan and keep you working for longer.
  • Part of the Trio Bearing System, the Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load
  • Capable of taking full cylinder extension force
  • Features durable wiper to help prevent contamination from entering the cylinder during retract cycles.
  • High-strength steel wire improves spring life
  • Spring retention design improves serviceability while allowing higher pre-load during assembly
  • Spring is easily removed without special tools.
  • High-strength steel plunger for improved life and sideload resistance
  • Nickel-plated plunger coating improves corrosion protection
  • Internal plunger threads for easy tool fixturing.
  • Standard carrying handles from 33 up to 55 lbs. Sizes above include certified lifting eyes or optional carrying handles
  • Collar threads, plunger threads and base mounting holes enable easy fixturing.
  • Improved Saddle Retention
  • Hardened plunger saddle protects plunger end during all lifting operations
  • Easily removable for access to plunger mounting threads
  • Tilt and smooth saddles available as accessories (compatible with new range of CATS-Series Tilt Saddles).
  • For full compatibility and peace of mind, the new RC-Series model numbers, external dimensions and threads remain unchanged from prior RC-Series cylinders. Ensuring compatibility with historical versions and systems.
Body Material Steel
Operating Pressure [Max] 10000 psi, 700 bar
Coupler Used CR400 Coupler
Plunger Type Solid
Plunger Thread Length 0.63 in, 16 mm
Saddle Diameter 1 in, 25 mm
Base Mounting Holes Thread Depth 0.56 in, 14 mm
Material Steel
Collar Thread 1 1/2-16 UN
Cylinder Effective Area - Advance 0.99 in2, 6.4 cm2
Plunger Internal Thread 3/4-16
Extended Height 17.75 in, 450 mm
Action Single-Acting
Collapsed Height 10.75 in, 273 mm
Oil Capacity - Advance 6.96 in3, 115 cm3
Bore Size 1.13 in, 28.6 mm
Series RC
Cylinder Class 5 Ton
Plunger Diameter 1 in, 25.4 mm
Cylinder Bore Diameter 1.13 in, 28.6 mm
Stroke 7 in, 177 mm
Base Mounting Holes Bolt Circle 1 in, 25 mm
Return Type Single-Acting, Spring Return
Base To Advance Port 0.75 in, 19 mm
Surface Treatment Paint
Stroke Range 7.0 to 9.99 in, 175 to 239 mm
Base Mounting Holes Thread 1/4-20 UN
Saddle Protrusion From Plunger 0.25 in, 6 mm
Cylinder Capacity Advance [MAX] 45 kN
Cylinder Type General Purpose
O.D. 1.5 in, 38 mm
Operating Pressure Ranges [MAX] 10000 psi
Collapsed Height [Min] 10 in, 255 mm
Collar Thread Length 1.13 in, 28 mm
Collapsed Height [Max] 14.99 in, 381 mm
Weight 5.8 LB
EAN or UPC 662005300624
