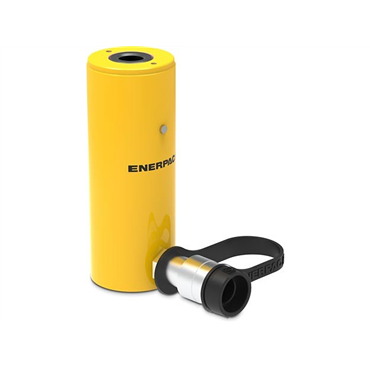

Single-Acting Hydraulic Cylinder

RCH123

Single-Acting Hydraulic Cylinder
Item #101949932
  • 3 in Stroke
  • 2.75 in Outside Diameter
Single-Acting Hydraulic Cylinder
    Shipment Options
  • 3 in Stroke
  • 2.75 in Outside Diameter

features

  • Hollow plunger design allows for both pull and push forces
  • Single-acting spring return
  • Nickel-plated, floating center tube on models over 20 Tons increases product life
  • Baked enamel finish for increased corrosion resistance
  • Collar threads for easy fixturing
  • Features CR400 Coupler
No. of Speeds 1
Plunger Internal Thread N/A
Stages 1
Maximum Operating Pressure 10000 psi
Operating Pressure [Max] 10000 psi, 700 bar
Oil Capacity 8.29 in3
Activating Fluid Hydraulic Oil
Outside Dia. 2.75 in
Center Hole Dia. 3/4 in
Capacity @ 10,000 psi 12 tons
Collapsed Height 7.25 in, 184 mm
Collar Thread 2 3/4-16
Single/Double-Acting Single Acting
Oil Capacity - Advance 8.29 in3, 136 cm3
Cylinder Effective Area - Advance 2.76 in2, 17.9 cm2
Cylinder Capacity 12 tons
Height [Min] 7.25 in
Series RCH
Cylinder Effective Area 2.76 in2
Plunger Diameter 1.38 in, 35.1 mm
Puller Capacity 12 tons
Capacity Wt. [Max] 12 tons
Retracted Height 7 1/4 in
Height [Max] 10.25 in
Centre Hole Diameter 0.77 in, 19.5 mm
Coupler Used CR400 Coupler
Bore Size 2.13 in, 54.1 mm
Surface Treatment Paint
Cylinder Class 12 Ton
Return Type Single-Acting, Spring Return
Collapsed Height [Min] 5 in, 128 mm
Action Single-Acting
Material Steel
Collapsed Height [Max] 9.99 in, 254 mm
Cylinder Bore Diameter 2.13 in, 54.1 mm
Stroke Range 3.0 to 4.49 in, 48 to 94 mm
Cylinder Capacity Advance [MAX] 125 kN
Cylinder Type Hollow Plunger
O.D. 2.75 in, 69 mm
Center Hole Diameter 0.77 in, 19.5 mm
Stroke 3 in, 76 mm
Extended Height 10.25 in, 260 mm
Base Mounting Holes Bolt Circle 2 in, 50.8 mm
Base Mounting Holes Thread 5/16-18 UNC
Base To Advance Port 0.98 in, 25 mm
Collar Thread Length 1.19 in, 30 mm
Base Mounting Holes Thread Depth 0.5 in, 12.7 mm
Body Material Steel
Operating Pressure Ranges [MAX] 10000 psi
Plunger Type Hollow
Weight 9.8 LB
EAN or UPC 662005302598
