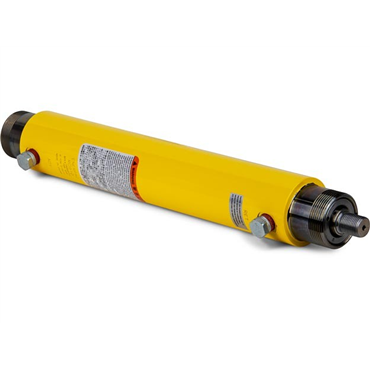

Double-Acting Hydraulic Cylinder

RD910

Double-Acting Hydraulic Cylinder
Item #113104913
  • 10.13 in Stroke
  • 2.5 in Outside Diameter
  • 16.81 in Body Length
Double-Acting Hydraulic Cylinder
    Shipment Options
  • 10.13 in Stroke
  • 2.5 in Outside Diameter
  • 16.81 in Body Length

features

  • Designed for long life, the best choice for production applications
  • Unique mounting configurations simplify fixturing
  • Baked enamel finish for increased corrosion resistance
  • Double-acting operation develops force in both directions, providing maximum versatility
  • Plunger wiper reduces contamination, extending cylinder life
Surface Treatment Paint
Cylinder Class 9 Ton
Plunger Protrusion 25 mm
Oil Capacity - Retract 9.94 in3, 162 cm3
Operating Pressure [Min] 35 bar
Internal Base Thread Length 0.55 in, 14 mm
Stroke 10.13 in, 257 mm
Body Length 16.81 in, 427 mm
Collar Thread Length 0.56 in, 14 mm
Cylinder Capacity Advance At 350 [BAR] 40 bar
Collapsed Height 17.78 in
Cylinder Effective Area - Retract 0.98 in2, 6.3 cm2
Cylinder Type General Purpose
Bottom to Advance Port 57 mm
Material Steel
Extended Height 27.91 in, 709 mm
Oil Capacity - Advance 17.89 in3, 293 cm3
Operating Pressure [Max] 10000 psi, 700 bar
Return Type Double-Acting, Hydraulic Return
Cylinder Capacity Retract [MAX] 5 Tons
Link Width 1.5 in
Plunger Diameter 1 in
Cylinder Bore Diameter 1.5 in, 38.1 mm
Cylinder Capacity - Advance 40 bar @ 350, 9000 lbs @ 5000 psi
Collapsed Height [Max] 19.99 in
Operating Pressure Ranges [MAX] 10000 psi
Stroke Range 10.0 to 11.99 in
O.D. 2.5 in, 63,5 mm
Collapsed Height [Min] 15 in
Neck Length 38 mm
Internal Base Thread 1 11/16-18
Cylinder Capacity - Retract 21.8 bar @ 350, 4910 lbs @ 5000 psi
Base To Advance Port 2.27 in
Cylinder Capacity Retract At 5000 PSI 4910
Plunger Type Solid
Cylinder Capacity Retract At 350 [BAR] 21.8 bar
Plunger External Thread 3/4-16
Series RD
Cylinder Capacity Advance At 5000 PSI 9000 lbs
Top To Retract Port 2.27 in
Top To Inlet Port 57 mm
Plunger Outside Thread 3/4-16
Cylinder Capacity Advance [MAX] 9 Tons
Saddle Protrusion From Plunger 0.98 in
Plunger Thread Length 0.75 in, 22 mm
Cylinder Effective Area - Advance 1.77 in2, 11.4 cm2
Action Double-Acting
Body Material Steel
Collar Thread 2-12
Bore Size 1.5 in, 38.1 mm
Weight 19.4 LB
EAN or UPC 662005305391
