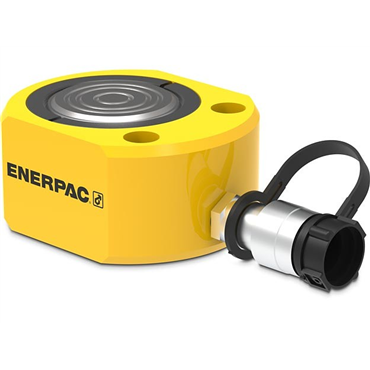

Single-Acting Hydraulic Cylinder

RSM500

Single-Acting Hydraulic Cylinder
Item #102222626
  • 0.63 in Stroke
  • 5.5 in x 4.5 in Outside Diameter
Single-Acting Hydraulic Cylinder
    Shipment Options
  • 0.63 in Stroke
  • 5.5 in x 4.5 in Outside Diameter

features

  • Compact, flat design for use where other cylinders will not fit
  • Mounting holes permit easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • CR400 coupler and dust cap included
  • Hard chrome plated high-quality steel plungers
  • Grooved plunger ends require no saddle
  • Single-acting spring return
Retracted Height 2.63 in
Collapsed Height 2.63 in, 66 mm
Maximum Operating Pressure 10000 psi
Series RSM
No. of Speeds 1
Oil Capacity - Advance 6.01 in3, 99 cm3
Oil Capacity 6.01 in3
Puller Capacity 50 tons
Plunger Diameter 2.75 in, 69.8 mm
Capacity Wt. [Max] 50 ton (long)
Cylinder Effective Area - Advance 9.62 in2, 62.1 cm2
Activating Fluid Hydraulic Oil
Cylinder Capacity 50 tons
Stages 1
Single/Double-Acting Single Acting
Operating Pressure [Max] 10000 psi, 700 bar
Cylinder Effective Area 9.62 in2
Outside Dia. 5.5 in
Capacity @ 10,000 psi 50 tons (long)
Plunger To Base 2.25 in, 57 mm
Cylinder Type Low Height
Base Mounting Hole Diameter 0.47 in, 11 mm
Base Mounting Hole Counter Bore Depth 0.5 in, 12.7 mm
Surface Treatment Paint
Material Steel
Coupler Used CR400 Coupler
Cylinder Bore Diameter 3.5 in, 88.9 mm
Bore Size 3.5 in, 88.9 mm
Plunger Type Solid
Plunger To Mounting Hole 2.13 in, 53 mm
Operating Pressure Ranges [MAX] 10000 psi
Stroke 0.63 in, 16 mm
Cylinder Class 50 Ton
Extended Height 3.25 in, 82 mm
Action Single-Acting
Base Mounting Hole Pitch 2.62 in, 66.5 mm
Cylinder Capacity Advance [MAX] 435 kN
O.D. 5.5 in x 4.5 in, 140 mm x 114 mm
Stroke Range 0 to 0.99 in, 0 to 23 mm
Return Type Single-Acting, Spring Return
Body Material Steel
Base To Advance Port 0.75 in, 19 mm
Base Mounting Hole Counter Bore Diameter 0.75 in, 19 mm
Saddle Protrusion From Plunger 0.08 in, 2 mm
Collapsed Height [Max] 4.99 in, 127 mm
Weight 15.0 LB
EAN or UPC 662005302383
