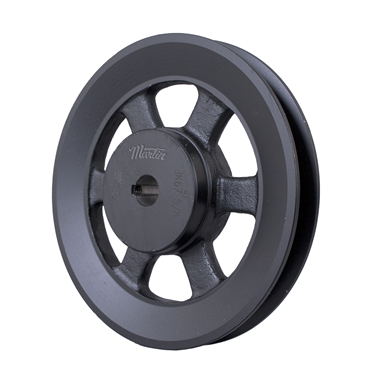

BK Series FHP Sheave

BK72 1

BK Series FHP Sheave
Item #102163900
  • Single Groove FHP Sheave
  • 6.95 in OD
  • For 4L, 5L, A, B Belt Cross Section
  • 1 in Bore
BK Series FHP Sheave
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Single Groove FHP Sheave
  • 6.95 in OD
  • For 4L, 5L, A, B Belt Cross Section
  • 1 in Bore

applications

  • Fractional horsepower sheaves for light duty applications

features

  • Precision machined grooves
  • Statically balanced
Material Cast Iron
Belt Size A, B, 4L, 5L
Pitch Diameter (3L) 6.6 in
Belt Match 1
Pitch Dia. 6.2 in
Series BK
Construction Internal Arm/Spoke
Set Screw Size 5/8-11 UNC
Overall Length 1.53125 in
Face Width 0.875 in
Length Through Bore 1.46875 in
Outside Dia. 6.95 in
No. of Grooves 1
Hub Projection 21/32 in
O.D. 6.95 in
Belt Cross Section 4L, 5L, A, B
Material Internal Use Cast Iron
Pitch Diameter (A) 6.2 in
Type FHP
Bore Type Finished Bore
Inch/Metric Inch
Hub O.D. 2.75 in
Finished Bore 1 in
Key Way Size 1/4 X 1/8 in
B (5L) Pitch Dia. 6.6 in
Material External Use Cast Iron
Weight 4.6 LB
EAN or UPC 697950233888
