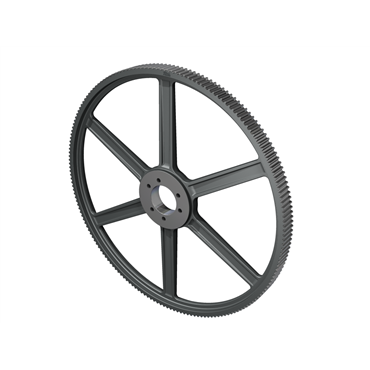

MPC Bushed Synchronous Sprocket

F14MX224S37-E

MPC Bushed Synchronous Sprocket
Item #110932937
  • Sprocket for # Chain, 224 Teeth, Single Strand, QD Bushed, Without Hardened Teeth
MPC Bushed Synchronous Sprocket
    Shipment Options
  • Sprocket for # Chain, 224 Teeth, Single Strand, QD Bushed, Without Hardened Teeth
Inch/Metric Metric
Belt Pitch 14.000 mm
Hardened Teeth Without Hardened Teeth
Length Through Bore 4.780 in
Finish Protective Coating
Belt Width 37.000 mm
Outside Dia. 39.1900 in
Bore Type Bushed
Bore Range [Max] 3 1/2 in
No. of Teeth 224
Bushing Type QD
Bushing Series E
Type C
No. of Strands Across 1
Width Across Teeth 2.06 in
O.D. 39.1900 in
Material Steel
Pitch Diameter 39.300 in
Sprocket Style C
Hub Dia. 7.38 in
Weight 177.0 LB
EAN or UPC 697950724188
