PB8MX32S12

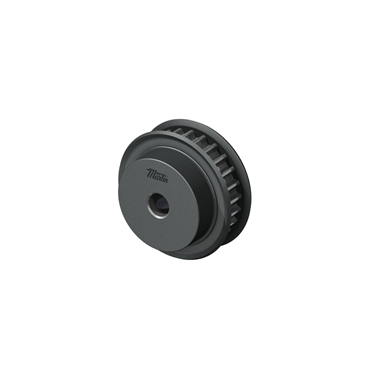

MPC Plain Bored Synchronous Sprocket

Item #104514378
each
    Shipment Options

Product details

  • 32 Teeth
  • B Sprocket Style
  • 0.5 in Minimum Bore
  • 2 in Maximum Bore

Specifications

Inch/Metric Inch
Flange O.D. 3.61
Belt Pitch 8.000 mm
No. of Teeth 32
Type Solid
Sprocket Style B
Material Steel
Bore Range [Min] 1/2 in
Bore Type Reborable
O.D. 3.1450 in
Flange O.D. [Max] 3.610 in
Bushing Type MPB
Face Width 0.85
Flange O.D. [MAX] 3.61
Pitch Diameter [Min] 3.208 in
Belt Width 12.000 mm
Finish Protective Coating
Hub O.D. 2.73 in
Pitch Diameter 3.208 in
Bore Range [Max] 2 in
Length Through Bore 1.420 in
Weight 2.67 LB
EAN or UPC 697950723105
