CESSWDM23933T

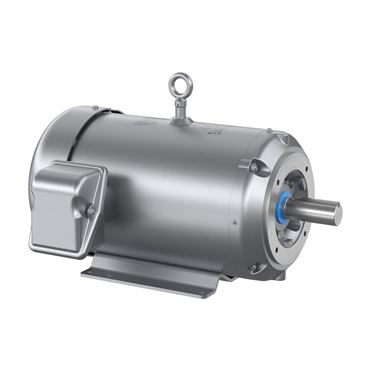

15 hp 254TC Frame Three Phase AC Motor

Item #101004012

Auto Replenish

each One-time purchase

Product Details

All external surfaces are 300 series stainless steel
Moisture-resistant insulation system
Four condensation drains in each endplate
Endplate rabbets sealed and conduit box gasketed
Labyrinth seals
IP56 rating: Protected from limited dust ingress and from high pressure water jets from any direction

Specifications

RPM	1,800 rpm
Overall Length	24.67 in
Mounting	C-Face - With Base
Shaft Dia.	1.625 in
Frame	254TC
End Plate	Standard
Rated Efficiency	92.4 %
Inverter Duty	Inverter Ready
Standard	CSA, CSA EEV, NEMA_PREMIUM, UR, NEMA
Speed	1765 rpm
Shaft Diameter	1.63 in
Conduit Box Material	Steel
Full Load Current	35/17.5
Synchronous	1800 rpm
Type	AC Motor
Power Factor	86
Shaft Grounding	No
Frequency	60 Hz
Poles	4
HP	15
Enclosure	TEFC
Insulation Class	F
Hz	60 Hz
Frame Size	254TC
Voltage Rating	230/460
Efficiency Group	Premium Efficient
Voltage	230 V, 460 V
NEMA Design	A
Multispeed	Single Speed
Service Factor	1.15
Frame Material	Stainless Steel
Phase	Three Phase
Duty Cycle	Continuous
Efficiency	92.4%
Mount Type	F1
Shaft Rotation	Reversible
Base	Rigid
Ambient Temperature	104 °F
Weight	293.0 LB
EAN or UPC	781568461990
