EJMM4107T

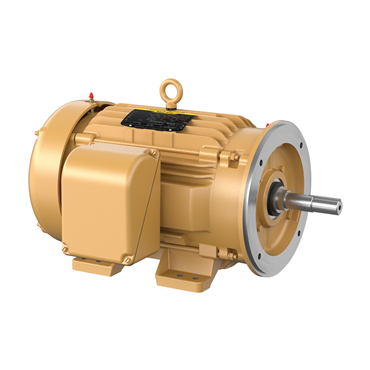

25 hp 284JM Frame Three Phase AC Motor

Item #101001151

Auto Replenish

each One-time purchase

Product Details

Energy saving close coupled pump applications where continuous- or frequent-duty is required
Suitable for use with inverter drives for variable torque and 20:1 constant torque

Specifications

Full Load rpm	3530 rpm
RPM	3600 rpm
Shaft Rotation	Reversible
Service Factor	1.15
Full Load Pf	91
Enclosure	TEFC
Duty Cycle	Continuous
Type	1038M
End Plate	C-Face
Useable at 208V	Yes
Mount Type	F1
Full Load Amps	28
Mult. Sym.	L1
Mounting Style	F-1
Speed	3520 rpm
Ambient Temperature	104 °F
Phase	Three Phase
Synchronous	3600 rpm
Rotation	R
Washdown Duty	No
Frequency	60 Hz
VoltCode	E1
RefPicture	EJMM
BALD Family Names	Premium Efficient, Pump Motor, Nema Premium™
Shaft Grounding	No
Conduit Box Material	Cast Iron
Poles	2
Frame Size	284JM
Base	Rigid
Inverter Duty	Inverter Ready
Drive End Bearing	6312
Overall Length	27.14 in
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Full Load Current	58/29
Rated Efficiency	91.7 %
Full Load Efficiency	93 %
Voltage	230 V, 460 V
Motor Application	Pump Duty, Premium Efficient
Efficiency	91.7%
NEMA Design	A
Voltage Rating	460, 230
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Brake Feature	No
Shaft Diameter	1.38 in
Insulation Class	F
HP	25
Frame	284JM
Multispeed	Single Speed
Open End Bearing	6309
Design	B
Frame Material	Iron
Mounting	Rigid Base
Shaft Dia.	1.25 in
Product Line	RG
Hz	60 Hz
Efficiency Group	Premium Efficient
Power Factor	88
Weight	351.0 LB
EAN or UPC	781568394939
