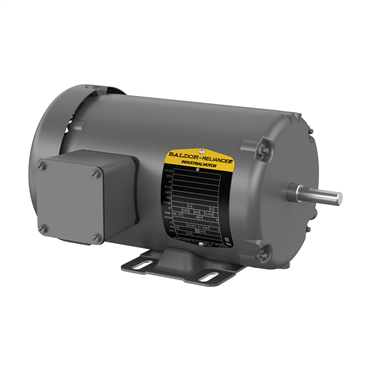

3/4 hp 48 Frame Three Phase AC Motor

M3464

3/4 hp 48 Frame Three Phase AC Motor
Item #101000262
  • TEFC Enclosure
  • 3/4 hp
  • 60 Hz Frequency
  • 48 Frame
3/4 hp 48 Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • TEFC Enclosure
  • 3/4 hp
  • 60 Hz Frequency
  • 48 Frame

applications

  • General-purpose applications
  • Pumps
  • Compressors
  • Fans
  • Conveyors
  • Machine tools
  • Blowers
  • Speed reducers

features

  • Ball bearings
  • Copper windings
  • Mounts in any position
  • Heavy-gauge steel frame

caution

  • Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death
  • Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
  • Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments
Mult. Sym. K
Useable at 208V Yes
Rotation R
Full Load Current 3.2-3/1.5
End Plate Standard
Voltage Rating 460, 230, 208
Power Factor 64
Base Rigid
Shaft Rotation Reversible
Standard CSA, UR, NEMA
Enclosure Designation TEFC - Totally Enclosed Fan Cooled
C Dimension 10 3/4 in
NEMA Design B
Enclosure TEFC
HP 3/4
Shaft Grounding No
Brake Feature No
Hz 60 Hz
Shaft Dia. 0.5 in
Full Load Amps 1.5
Phase Three Phase
Multispeed Single Speed
Motor Shaft Size 1/2 in
Overall Length 10.73 in
Motor Application General Purpose
Poles 4
Mounting Rigid Base
Product Line RG
Duty Cycle Continuous
Full Load Pf 60
Frequency 60 Hz
Washdown Duty No
Open End Bearing 6203
Type 3420M
Motor Shaft Length 1 1/2 in
Drive End Bearing 6203
Insulation Class B
VoltCode E
Mounting Style F-1
Shaft Diameter 0.5 in
BALD Family Names General Purpose
RPM 1800 rpm
Efficiency 75.5%
C Face Kit 34-3900
Efficiency Group Standard Efficient
Synchronous 1800 rpm
Design B
RefPicture M3538
Speed 1725 rpm
Full Load Efficiency 75.5 %
Service Factor 1.25
Ambient Temperature 104 °F
Full Load rpm 1725 rpm
Mount Type F1
Frame Material Steel
Frame Size 48
Voltage 230 V, 460 V
Frame 48
Rated Efficiency 75.5 %
Weight 25.0 LB
EAN or UPC 781568101964
