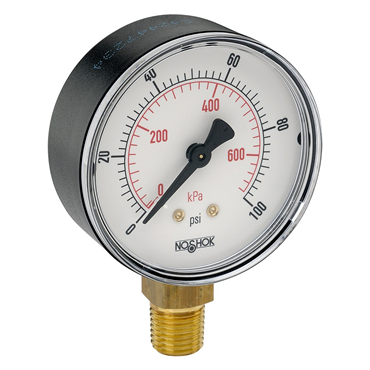

- 2 1/2 in Gauge Size
- 0 to 100 psi Pressure Range
- NPT Connection Type
- Acrylonitrile Butadiene Styrene (ABS) Material
features
- Accurate and reliable general purpose dry gauge with vacuum & compound ranges, and ABS or Steel case. Ideal for applications including hydraulics, pneumatics, medical, pumps, compressors, refrigeration controls and more.
Multiple connection options are available including panel mount. A wide variety of pressure ranges, scale options, connections sizes, and options including flanges, case options, cover rings, lens materials, pointers, and orifices are also available.
Cleaning for Oxygen Service (O2) is available only for dry or HL (Halocarbon) filled gauges.
| Connection Type | NPT |
| Measuring Element | Copper Alloy Bourdon Tube |
| Ambient Temperature Range [Max] | 140 °F |
| Media Temperature [Max] | 140 °F |
| Display Size | White Background with Black Primary Scale and Red Secondary Scale. UV Resistant. |
| Case Type | ABS, Bottom Connection |
| Media Temperature [Min] | -4 °F |
| Connection Location | Bottom |
| Pointer | Molded Plastic |
| Connection Material | Brass |
| Ambient Temperature Range [Min] | -40 °F |
| Accuracy | 2.5 % |
| Pressure Range | 0 to 100 psi |
| Type | Dry Pressure Gauge |
| Warranty | 1 Year |
| Lens/Display Material | Acrylic |
| Connection Size | 1/4 in |
| Gauge Size | 2 1/2 in |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Weight | 0.0 LB |
