048A17T2003

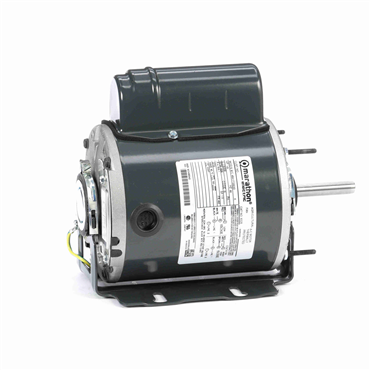

0.33 Hp 60 Hz 1800 rpm Totally Enclosed Air Over Single Phase General Purpose Motor

Item #113091191

Auto Replenish

each One-time purchase

Product Details

Double-shielded bearings extend the service life of the motor.
EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
Shaft flingers protect bearings from damage caused by dirt and rain.
Condensation drains allow the motor to expel and drain built-up moisture.

Specifications

Service Factor	1
HP	0.33
Insulation Class	B
ODE Bearing Type	Ball
Efficiency	68.5
Assembly/Box Mounting	F1 Only
Shaft Diameter	0.5 in
ODE Bearing Size	6203
Motor Orientation	Horizontal
Electrical Type	Permanent Split Capacitor
Mounting Type	Resilient Base - Extended Studs
Speed [Max]	1625 rpm
Duty	Continuous
Frame	48Z
Rotation	Selective Counterclockwise
Ambient Temperature Range [Max]	104 °F
Starting Type	Across The Line
KVA Code	G
DE Bearing Type	Ball
Shaft Type	Single Special Extension
Overload Protector	Automatic
Frame Material	Rolled Steel
Amps	4.2/2.1
Power Factor	71.9
Frame Length	5.5 in
Voltage	115/230 V
No. of Poles	4
IP Rating	IP43
DE Bearing Size	6203
Shaft Extension	2.56 in
Standard	CSA, UL Recognized
No. of Phases	Single
Hz	60
No. of Speeds	1
Enclosure	TEAO
Weight	20.0 LB
EAN or UPC	722856028006
