056T17D15845

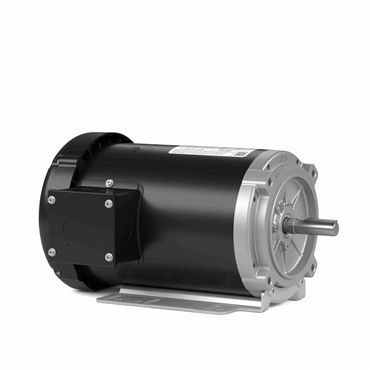

Flex-in-1™ Three Phase General Purpose AC Motor FX12FK002

Item #119820153

56HC Frame

Drip Proof Enclosure

+ Show More

Auto Replenish

each One-time purchase

Product Details

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit, Adding a brake kit, Adding a drip cover (ODP), Adding lint guard (TEFC).
Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option.
***Kits sold separately. Light assembly required.

Specifications

Power Rating	0.5 Hp, 0.37 KW
Mounting	Bolt-on Base
Inch/Metric	Inch
Service Factor	1.15
Frequency	60 Hz
Speed 2	1725
Voltage	575 V
Frame Material	Rolled Steel
Phase	Three Phase
RPM [Max]	1725 RPM
Shaft Type	NEMA 56
No. of Speeds	1
Motor Orientation	Horizontal
Duty	Continuous
Ambient Temperature	104 °F
Bearing Type	Ball
Shaft Dia.	0.63 in
Enclosure	Drip Proof
KVA Code	P
Rotation	Reversible
Amps	0.7 A
Insulation Class	F
Amps 2	0.7 A
Frame	56HC
Electrical Type	Squirrel Cage Inverter Rated
Drive End Bearing	6203
Standard	CE, CSA, UL
Ambient Temperature Range [Max]	104 °F
NEMA Design	B
Starting Type	Line Or Inverter
Voltage Rating	575 V
Power Factor	66
Motor Application	General Purpose
Poles	4
Efficiency	78.2 %
Thermal Protection	No Protection
Weight	0.0 LB
EAN or UPC	691720115480
