056T34D15645

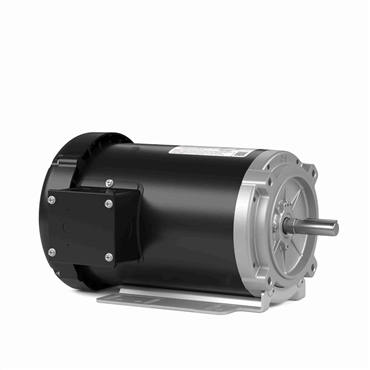

Flex-in-1™ Three Phase General Purpose AC Motor FX34BK001

Item #119820171

56HC Frame

Drip Proof Enclosure

+ Show More

Auto Replenish

each One-time purchase

Product Details

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit, Adding a brake kit, Adding a drip cover (ODP), Adding lint guard (TEFC).
Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option.
***Kits sold separately. Light assembly required.

Specifications

RPM [Max]	3450 RPM
Power Factor	68
Inch/Metric	Inch
Speed 2	3450
Motor Orientation	Horizontal
Thermal Protection	No Protection
Shaft Dia.	0.63 in
Voltage	208-230/460 & 190/380 V
Bearing Type	Ball
Ambient Temperature	104 °F
Drive End Bearing	6203
No. of Speeds	1
Insulation Class	F
Power Rating	0.75 Hp, 0.56 KW
Electrical Type	Squirrel Cage Inverter Rated
Shaft Type	NEMA 56
Poles	2
Duty	Continuous
Ambient Temperature Range [Max]	104 °F
Enclosure	Drip Proof
Standard	CE, CSA, UL
Phase	Three Phase
Frequency	60 & 50 Hz
Motor Application	General Purpose
Frame Material	Rolled Steel
NEMA Design	B
Amps	2.5-2.6/1.3 A
Frame	56HC
Starting Type	Line Or Inverter
Efficiency	82.5 & 81.5 %
Service Factor	1.25 & 1.00
KVA Code	M
Rotation	Reversible
Mounting	Bolt-on Base
Voltage Rating	208-230/460 V
Amps 2	2.6/1.3 A
Weight	0.0 LB
EAN or UPC	691720115466
