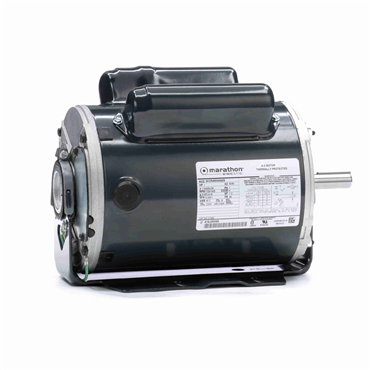

1 Hp 60 Hz 1800 rpm Totally Enclosed Non Ventilated Single Phase General Purpose Motor

5KCR49SN0042S

1 Hp 60 Hz 1800 rpm Totally Enclosed Non Ventilated Single Phase General Purpose Motor
Item #111044047
  • 1 HP - Single Phase
  • 60 Hz - 56 Frame
  • 115/208-230 V
  • 1725 rpm
1 Hp 60 Hz 1800 rpm Totally Enclosed Non Ventilated Single Phase General Purpose Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 1 HP - Single Phase
  • 60 Hz - 56 Frame
  • 115/208-230 V
  • 1725 rpm

features

  • Double-shielded bearings extend the service life of the motor.
  • EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
  • Shaft flingers protect bearings from damage caused by dirt and rain.
  • Condensation drains allow the motor to expel and drain built-up moisture.
Enclosure TENV
Motor Application Farm Duty
Drive End Bearing 6203
Voltage Rating 115/208-230
Voltage 115/208-230 V
HP 1
ODE Bearing Type Ball
Motor Orientation ANY
Ambient Temperature Range [Max] 104 °F
Shaft Extension 1.88 in
DE Bearing Size 6203
Hz 60
Frame Material Rolled Steel
Service Factor 1.3
Duty Continuous
No. of Phases Single
Insulation B
Phase Single Phase
Amps 9.6,5.2-4.8
No. of Speeds 1
Rotation Counterclockwise/Clockwise
Enclosure Designation Totally Enclosed Non Ventilated
Insulation Class B
Standard CSA, UL Recognized
Open End Bearing 6203
KVA Code H
Frame Length 7.68 in
Poles 4
Efficiency 77
Shaft Diameter 0.63 in
Speed [Max] 1725 rpm
Full Load Amps 9.6, 5.2-4.8
Mounting Resilient Base
Mounting Type Resilient Base
Electrical Type Capacitor Start Capacitor Run
Overload Protector Automatic
No. of Poles 4
Starting Type SM
Frame 56
ODE Bearing Size 6203
DE Bearing Type BALL
Weight 35.0 LB
EAN or UPC 722856028112
