PEA335

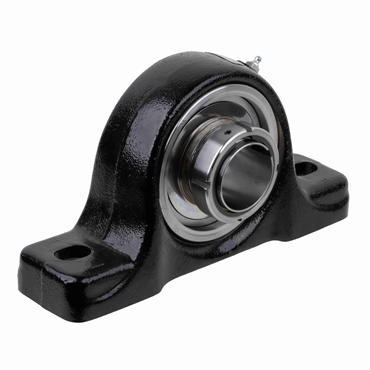

2 3/16 in Heavy Duty Cast Iron 2 Bolt Pillow Block

Item #101731833

Auto Replenish

each One-time purchase

Product Details

Specifications

Speed [Max]	4950 rpm
Fixed Expansion	Expansion
Vibration Frequency Outer Ring Defect	0.051 cps
Duty	Heavy-Duty
No. of Bolts	2
Series	300
Mounting Pad Length	12 5/8 in
Mounting Pad Height	1 1/2 in
Mounting Bolt Size	3/4 in
Base Length	12 5/8 in
Housing Material	Cast Iron
Length Through Bore	3.35938 in
Coating	Powder Coated
Lubrication Type	EXXON RONEX MP STD
Locking Device	Adapter Mounted
Temperature [Max]	225 °F
Handle / Housing Material	Cast Iron
Flange Type	2-Bolt Flange
Primary Seal	Clearance Seal With Flingers
Housing Height	6 13/16 in
Seal Type	Clearance Seals
Mounting Bolt Hole Slot Length	1 1/4 in
Setscrew Torque	87-92 in/lbs
Bearing Design	Expansion
Center of Bearing to Front of Inner Ring	2 5/32 in
I.D.	3 23/64 in
Inch/Metric	Inch Bore
Shaft Locking	Shurlok Tapered Adapter
Bolt Hole Spacing	10 1/4 in
Base Width	3 3/8 in
Dynamic Load Rating	16070 lb
Vibration Frequency Roller Spin	0.033 cps
Vibration Frequency Fundamental Train	0.006 cps
Base to Centerline Height	3 1/2 in
Temperature Range [Max]	225 °F
Internal Clearance	C3 Standard
Distance Between Bolt Holes	10 1/4 in
Bolt Size	3/4 in
Total Expansion Capability	9/32 in
Static Load Rating	10000 lb
Shaft Dia.	2.1875 in
Vibration Frequency Inner Ring Defect	0.082 cps
Retainer Type	Nylon
Grease Fitting Size	1/4-28
Bolt Hole Length	1 1/4 in
Duty Type	Heavy
Locknut O.D.	3 15/64 in
Base Height	1 1/2 in
Bearing Type	Ball Bearing
Mounting Pad Width	3 3/8 in
Weight	25.0 LB
EAN or UPC	662864296977
