PU3K47

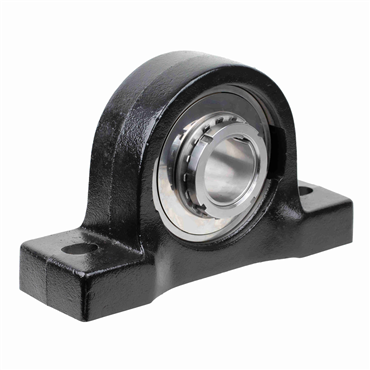

2 15/16 in Heavy Duty Cast Iron 2 Bolt Pillow Block

Item #102209786

Auto Replenish

each One-time purchase

Product Details

Specifications

Temperature [Max]	225 °F
Shaft Locking	Tapered Adapter Mount
Size Code	356
Base Height	2 1/4 in
Total Expansion Capability	11/32 in
Bearing Type	Ball Bearing
Vibration Frequency Outer Ring Defect	0.032 cps
Vibration Frequency Roller Spin	0.035 cps
Length Through Bore	3.53125 in
Mounting Pad Length	16 1/8 in
Locking Device	Adapter Mounted
Internal Clearance	C3 Standard
Bolt Holes	2
Base to Centerline Height	5 1/8 in
Speed [Max]	3100 rpm
Mounting Bolt Size	1 in
Vibration Frequency Fundamental Train	0.007 cps
Grease Fitting Size	1/8 NPT
Center of Bearing to End of Cover	2 3/4 in
Retainer Type	Nylon
Base Width	5 in
Bolt Hole Spacing	12 7/8 in
Pillow Block Type	Thru-Bolt
Series	300
Bolt Size	1 in
Housing Height	9 7/8 in
I.D.	3 17/32 in
Locking Collar O.D.	4 13/32 in
Fixed Expansion	Fixed
Duty Type	Heavy
Vibration Frequency Inner Ring Defect	0.082 cps
Lubrication	Relubricatable
Inch/Metric	Inch Bore
Coating	Powder Coated
Static Load Rating	24100 lb
Dynamic Load Rating	35070 lb
Center of Bearing to Front of Inner Ring	2 3/8 in
Distance Between Bolt Holes	12 7/8 in
Mounting Pad Width	5 in
Base Length	16 1/8 in
RPM [Max]	3100 rpm
Lubrication Type	EXXON RONEX MP STD
Mounting Pad Height	2 1/4 in
Bearing Design	Non-Expansion
Shaft Dia.	2.9375 in
No. of Bolts	2
Primary Seal	Clearance Seal With Flingers
Mounted Unit Duty	Heavy-Duty
Housing Construction	1 Piece
Bolt Hole Length	1 5/8 in
Seal Type	Clearance Seals
Mounting Bolt Hole Slot Length	1 5/8 in
Housing Material	Cast Iron
End Type	Open End
Weight	52.5 LB
EAN or UPC	793699068511
