326THFPA8086

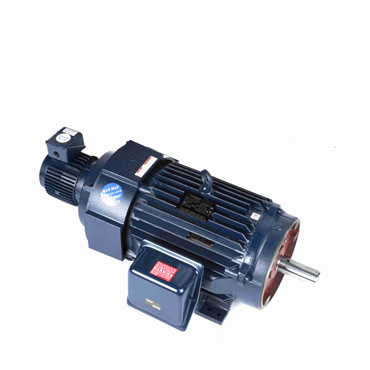

30 Hp 60 Hz 1200 rpm Explosion Proof Fan Cooled Three Phase Encoder Motor

Item #106558324

Auto Replenish

each One-time purchase

Product Details

MAX GUARD® Class H insulation system
Constant torque operation from 0 to base speed on vector drive, including TEFC (On Volts/Hertz drives, TEFC motors are limited to 20:1 constant torque
Constant HP operation to twice base speed (143-256 frame)
1.5 times base (all others)
Optimized for operation with IGBT inverter (NEMA Design B)
Separate power supply required for blower motor
Normally closed thermostats (one per phase, class F)
Continuous duty at 40°C ambient
Blue Chip quality, cast iron frame and brackets
Patented “fracket” design (TEBC enclosure)
Separate 230/460 volt power supply required for 1 HP blower motor

Specifications

No. of Poles	6
Shaft Extension	5 in
Service Factor	1
Poles	6
Insulation	H
Full Load Amps	80.5/40
Assembly/Box Mounting	F1/F2 CAPABLE
Overload Protector	Thermostat
No. of Phases	Three
Resistance Main	0.28000000000000003
Enclosure Designation	Totally Enclosed Blower Cooled - Axial
NEMA Design	INV
Shaft Type	T
Ambient Temperature Range [Max]	104 °F
Drive End Bearing	6312
Frame Material	Cast Iron
Motor Application	Inverter Duty, Encoder Provided
ODE Bearing Type	Ball
DE Bearing Size	6312
Voltage	230/460 V
DE Bearing Type	Ball
KVA Code	G
Speed [Max]	1170 rpm
Enclosure	TEBC - Axial
Efficiency	89.5
IP Rating	IP43
Motor Orientation	Horizontal
Phase	Three Phase
Standard	CE, CSA, UL Recognized
Shaft Diameter	2.125 in
Frame	326TC
Mounting	Rigid Base
Electrical Type	Squirrel Cage Inverter Duty
Rotation	Reversible
HP	30
Open End Bearing	6311
Power Factor	78
ODE Bearing Size	6311
Voltage Rating	230/460
Insulation Class	H
Hz	60
No. of Speeds	1
Starting Type	Inverter Only
Amps	80.5/40
Mounting Type	Rigid Base
Duty	Continuous
Frame Length	16.25 in
Weight	550.0 LB
EAN or UPC	722856025302
