326TTTS16533

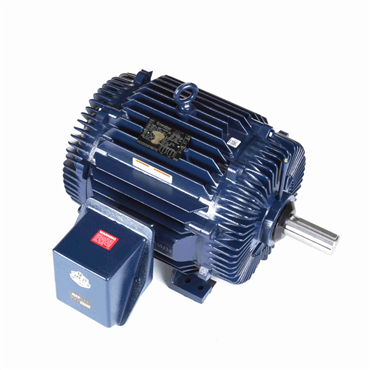

50 Hp 60 Hz 1800 rpm Drip Proof Three Phase Severe Duty Motor

Item #112848944

Auto Replenish

each One-time purchase

Product Details

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
Internal and external epoxy paint
MAX GUARD® Class F insulation system
1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
Extended grease tubes, Regreasable in service
T-drains provided for effective drainage (Installed in both endshields)
Suitable for all angle mounting
Suitable for 20:1 VT and 20:1 CT on VFD

Specifications

No. of Poles	4
Standard	CE, CSA, UL Recognized
Voltage	230/460 V
Mult. Sym.	S3
Frame Material	Cast Iron
Service Factor	1.15
Frame Length	13 in
Shaft Extension	5.5 in
Power Factor	82
Resistance Main	0.112
Speed [Max]	1775 rpm
Insulation	F
Efficiency Group	NEMA Premium®
Washdown Duty	No
KVA Code	F
Mounting	Rigid Base
Duty	Continuous
Mounting Type	Rigid Base
Shaft Diameter	2.125 in
Frame	326TV
Voltage Rating	230/460
Insulation Class	F
NEMA Design	B
ODE Bearing Type	Ball
RPM	1800 rpm
Enclosure	TEAO
HP	50
DE Bearing Size	6312
Full Load Amps	120/60
No. of Speeds	1
Efficiency	94.5
Electrical Type	Squirrel Cage Inverter Rated
Rotation	Reversible
Starting Type	Line Or Inverter
Phase	Three Phase
Motor Orientation	Horizontal Or Up Or Down
DE Bearing Type	Ball
Epact Nominal Full Load Efficiency	94.5 %
Shaft Type	T
Assembly/Box Mounting	F1/F2 CAPABLE
ODE Bearing Size	6311
Amps	120/60
No. of Phases	Three
Hz	60
Ambient Temperature Range [Max]	104 °F
IP Rating	IP56
Frame Size	326T
Motor Application	Severe Duty
Weight	644.0 LB
EAN or UPC	722856132284
