U1878

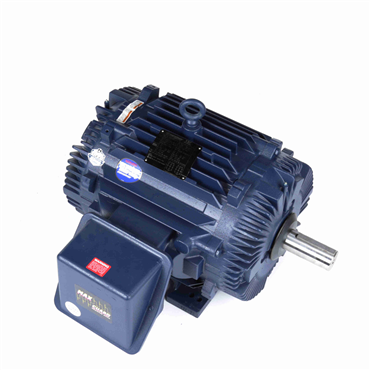

75 Hp 60 Hz 1800 rpm Drip Proof Three Phase Severe Duty Motor

Item #112848946

Auto Replenish

each One-time purchase

Product Details

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
Internal and external epoxy paint
MAX GUARD® Class F insulation system
1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
Extended grease tubes, regreasable in service
T-drains provided for effective drainage (Installed in both endshields)
Suitable for all angle mounting
Suitable for 20:1 VT and 20:1 CT on VFD

Specifications

Voltage	230/460 V
Efficiency	95.4
Frame Size	365T
Efficiency Group	NEMA Premium®
Rotation	Reversible
No. of Speeds	1
Motor Orientation	Horizontal Or Up Or Down
DE Bearing Type	Ball
Mounting	Rigid Base
Hz	60
Motor Application	Severe Duty
Frame	365TV
Ambient Temperature Range [Max]	104 °F
Full Load Amps	172/86.0
IP Rating	IP56
KVA Code	G
Speed [Max]	1780 rpm
RPM	1800 rpm
ODE Bearing Size	6312
Insulation Class	F
Duty	Continuous
ODE Bearing Type	Ball
Mult. Sym.	S3
Mounting Type	Rigid Base
No. of Poles	4
Resistance Main	7.4999999999999997E-2
Epact Nominal Full Load Efficiency	95.4 %
Shaft Type	T
Phase	Three Phase
Enclosure	TEAO
Frame Material	Cast Iron
No. of Phases	Three
Service Factor	1.15
Standard	CE, CSA, UL Recognized
Electrical Type	Squirrel Cage Inverter Rated
Assembly/Box Mounting	F1/F2 CAPABLE
Washdown Duty	No
Shaft Extension	6.13 in
DE Bearing Size	6314
Amps	172/86
HP	75
Power Factor	86
NEMA Design	B
Starting Type	Line Or Inverter
Frame Length	14.5 in
Insulation	F
Shaft Diameter	2.375 in
Voltage Rating	230/460
Weight	1169.0 LB
