36-GC5200-01

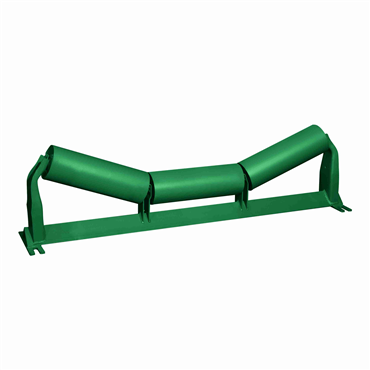

CEMA C 20° Equal Trougher

Item #101493453

Auto Replenish

each One-time purchase

Product Details

Specifications

Lubrication	Relubricatable
Installed Options	None
Bolt Hole Spacing - Length	45 in
Bolt Spacing Center to Center	7.5 in
Belt Width	36 in
Roller Dia.	5 in
CEMA Class	CEMA Class C - Medium Duty
Volume	0.097 m3
Series	Rex Classic
Center Rolls Shell Length	13 in
Center Roll Height	8 1/16 in
Overall Height	13.125 in
Bearing Type	Tapered Roller Bearing
Material	Steel
Roll Type	Three Rolls, Equal Length
Width of Bolt Spacing [Min]	5 3/4 in
Bolt Spacing Center to Center [Min]	5.75 in
Bracket Length	47 in
Roller Span	38 1/16 in
Bolt Hole Spacing - Width	7.5 in
Roller Length	13 in
Bolt Spacing Center to Center [Max]	8.5 in
Idler Type	Equal Trougher
Bracket Width	9 1/4 in
Lubricant Type	Regreaseable
Roller Material	Steel
Trough Angle [Nom]	20 °
Length of Idler Belt Width	47 in
Mounting Pad Thickness	0.31 in
Weight	65.0 LB
EAN or UPC	698210638092
