AZAFS6407YF

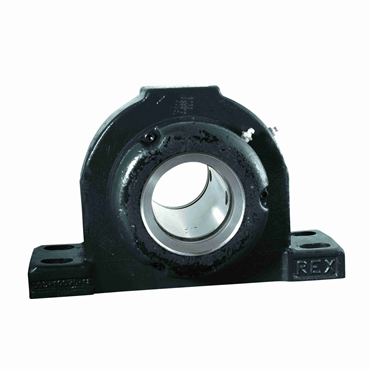

10414812 / AZAFS6407YF 4 7/16 PILLOWBLK ROLLR BRG

Item #101514850

Auto Replenish

each One-time purchase

Product Details

Specifications

Auxiliary Seals	2 Open Caps Cast Iron
Threaded Cover Kit	TC12Y
Static Load Rating	159300 lb
Distance Between Bolt Holes [Min]	14 1/2 in
Mounting Pad Height	2 1/16 in
Seal Kit	ZS12Y
Vibration Frequency Roller Spin	0.0568 cps
Locknut O.D.	6 1/16 in
Seal Type	Clearance Seals
Grease Fitting Size	1/4 NPT
Retainer Type	Engineered Polymer
Mounting Bolt Size	7/8 in
Mounting Pad Length	18.375 in
Volume	0.304 Hectoliter
Size Code	12
Radial Dynamic Load Capacity	149500 lb
Vibration Frequency Outer Ring Defect	0.1433 cps
Temperature [Max]	225 °F
Shaft Dia.	4.4375 in
Mounting Pad Width	5 1/8 in
Distance Between Bolt Holes [Max]	16 in
Bearing Type	Spherical Roller
Housing Coating	Powder Coated
Bolt Hole Spacing	3 1/4 in
Vibration Frequency Inner Ring Defect	0.1901 cps
Vibration Frequency Fundamental Train	0.0072 cps
Housing Material	Cast Iron
Shaft Locking	Shurlok Tapered Adapter
Mounting Bolt Hole Slot Length	1 3/4 in
Primary Seal	Steel Clearance Seal
Inch/Metric	Inch Bore
Mounted Clearance	C3 Standard
Microlock Kit	ML4
Setscrew Torque	290-325 in-lbs
Bore Length	10 3/16 in
RPM [Max]	1850 rpm
Lubrication Type	Exxon Ronex MP Std
Base to Centerline Height	6 in
Weight	176.0 LB
EAN or UPC	793699992366
