MBR9307

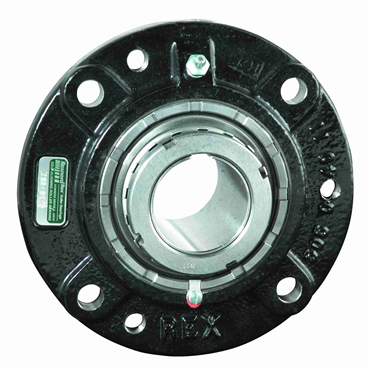

9000 Series 4-Bolt Flange Spherical Roller Bearing Cartridge Unit

Item #101495866

Auto Replenish

each One-time purchase

Product Details

Specifications

Shape	Round
Temperature Range [Max]	225 °F
Flange Pilot Diameter	8 1/8 in
Flange Thickness	1 1/8 in
Bore Dia. [Max]	6 7/16 in
Retainer Type	Engineered Polymer
Series	9000
Flange Type	4-Bolt Flange
Locking Device	Adapter Mounted
Type	Spherical Roller Bearing
Seal Type	Spring Loaded Heavy Contact Seals
Shaft Locking	Tapered Adapter Mount
Radial Dynamic Load Capacity	130970 lb
Lubrication Type	Exxon Ronex MP Std
Bearing Type	Spherical Roller
Housing Length	10 7/8 in
Bolt Hole Spacing	6 5/8 in
Length Through Bore	5 in
Bolt Circle Radius	4 11/16 in
Lubricant Type	Exxon Ronex MP
Static Load Rating	137000 lb
Locknut Outside Diameter	5 3/16 in
Primary Seal	Buna Spring Loaded Lip Seal
Vibration Frequency Roller Spin	0.0548 cps
Vibration Frequency Fundamental Train	0.0071 cps
Vibration Frequency Inner Ring Defect	0.1717 cps
Shaft Dia.	3 7/16 in
Bearing Design	Non-Expansion
Bore Dia. [Min]	1 15/16 in
Pilot Depth	1 1/2 in
Housing Material	Cast Iron
RPM [Max]	1200 rpm
Duty	Heavy-Duty
Vibration Frequency Outer Ring Defect	0.1283 cps
Bolt Size	3/4 in
Size Code	11
Inch/Metric	Inch
Grease Fitting Size	1/8 NPT
Relubricatable	Yes
Housing Coating	Powder Coated
Weight	52.0 LB
EAN or UPC	793699303636
