MF9207B

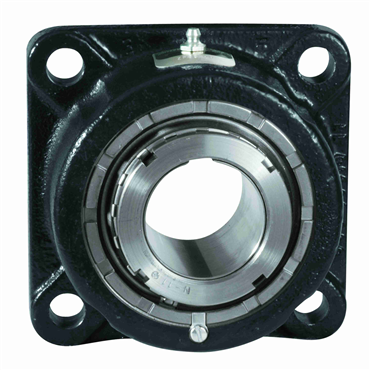

Cast Iron 2 7/16 in Shaft Dia Tapered Adapter Mount Spherical Roller Flange Block

Item #101474989

Auto Replenish

each One-time purchase

Product Details

Specifications

Shaft Locking	Tapered Adapter Mount
Grease Fitting Size	1/8 NPT
Mounted Clearance	C3 Standard
Bearing Design	Non-Expansion
Radial Dynamic Load Capacity	57750 lb
Primary Seal	Buna Spring Loaded Lip Seal
Vibration Frequency Fundamental Train	0.0072 cps
Volume	1.697 GLL
Locking Device	Adapter Mounted
Housing Material	Cast Iron
Lubrication Type	Exxon Ronex MP Std
Vibration Frequency Roller Spin	0.0591 cps
Size Code	9
Inch/Metric	Inch
Shaft Dia.	2.4375 in
Lubrication	Relubricatable
Bearing Type	Spherical Roller
Bore Range [Min]	1.9375 in
Bore Range [Max]	4.4375 in
Bearing Housing	Flg Blk 4 Blt SQ Type ZF
Auxiliary Seals	1 Closed Cap Cast Iron
Seal Type	Spring Loaded Heavy Contact Seals
RPM [Max]	1700 rpm
Static Load Rating	71500 lb
Vibration Frequency Inner Ring Defect	0.1701 cps
Housing Coating	Powder Coated
Flange Type	4-Bolt Flange
Series	9000
Shape	Square
Threaded Cover Kit	TC9
Mounted Unit Duty	Heavy Duty
Vibration Frequency Outer Ring Defect	0.1299 cps
Retainer Type	Engineered Polymer
Weight	26.6 LB
EAN or UPC	698210943998
