MFS9215V4078

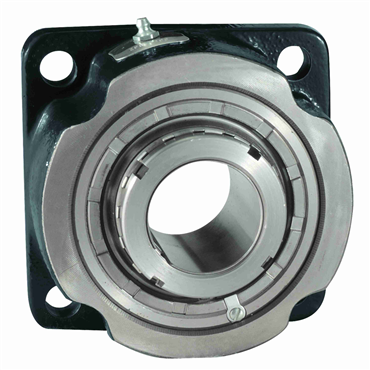

Cast Iron 2 15/16 in Shaft Dia Tapered Adapter Mount Spherical Roller Flange Block

Item #103361815

Auto Replenish

each One-time purchase

Product Details

Specifications

Static Load Rating	90700 lb
Distance Between Bolt Holes	6 23/32 in
Temperature [Max]	225 °F
Lubrication Type	Preservative Only - No Grease
Bearing Type	Spherical Roller
Lubrication	Relubricatable
Bearing Housing	Flg Blk 4 Blt SQ Type ZF
Volume	1.712 GLL
Bore Length	4 1/4 in
Shaft Dia.	2.9375 in
Mounted Unit Duty	Heavy Duty
Shaft Locking	Tapered Adapter Mount
Threaded Cover Kit	TC10
Bore Range [Max]	4.4375 in
Mounted Clearance	C3 Standard
Mounting Bolt Size	3/4 in
Inch/Metric	Inch
Primary Seal	Viton Spring Loaded Lip Seal
Vibration Frequency Inner Ring Defect	0.1784 cps
Seal Type	Spring Loaded Heavy Contact Seals
Special Lube Percent	0% Fill
Vibration Frequency Fundamental Train	0.0073 cps
Radial Dynamic Load Capacity	84330 lb
Flange Type	4-Bolt Flange
Retainer Material	Steel
Bolt Circle Radius	4 3/4 in
Locking Device	Adapter Mounted
Mounting Pad Height	1 in
Size Code	10
Housing Material	Cast Iron
RPM [Max]	1400 rpm
Vibration Frequency Outer Ring Defect	0.1383 cps
Vibration Frequency Roller Spin	0.0628 cps
Housing Coating	Powder Coated
Seal Kit	MS10V
Grease Fitting Size	1/8 NPT
Housing Width	8 7/16 in
Bearing Design	Expansion
Retainer Type	Steel
Standoff Distance	3/8 in
Series	9000
Microlock Kit	ML3
Shape	Square
Bore Range [Min]	1.9375 in
Locknut O.D.	4 13/32 in
Weight	44.0 LB
EAN or UPC	793699672152
