120H COTT

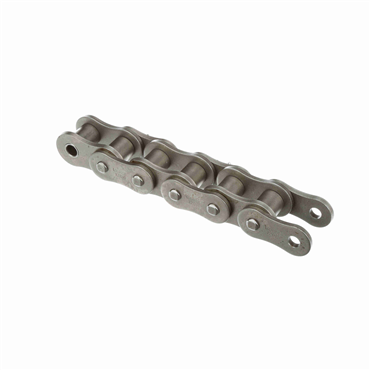

Standard Roller Chain

Item #101645687

Heavy Duty

+ Show More

Auto Replenish

Foot One-time purchase

Alternate Products

Morse 120H COTT

Standard Roller Chain

Item #101380452

Foot

Compare

Renold Jeffrey Chain 120H COTT

Standard Roller Chain

Item #102138081

Foot

Compare

Product Details

PerforMax™ solid lube grooved bushings included in sizes 80 through 140 to maximize wear life
Long lasting, heat-treated, solid rollers
Heat-treated pins that are fabricated from high grade steel
Ring-coined connecting links with same fatigue strength as base chain providing improved capacity
Higher horsepower capacity
Built to handle shock loads
Dynamic prestressing
Complies with RoHS restrictions on the use of certain hazardous substances in electrical and electronic equipment

Specifications

Duty	Heavy
Pin Material	Carbon Steel
Maximum Allowable Load	7270 lb
Pins & Rollers	Standard
Average Tensile Strength	37,480 lbf
Standard Type of Pin	Cottered
No. of Strands Across	1
ANSI No.	120
Link Plates Thickness	0.219 in
Rated Working Load	7,270 lb
Pin Overall Length	2.264 in
Roller Dia.	7/8 in
Package Type	10 Foot Box
Width Between Roller Link Plates	1 in
Series	Standard
Side Bow	No
Chain Type	ANSI
Chain No.	120
Chain Construction	Cottered
Pin Diameter	0.437 in
Roller Width	1 in
Self-Lubricating	No
Material	Carbon Steel
Chain Series	120, 120-2, 120-3, 120-4, 120-6, 120-8
Chain Pitch	1 1/2 in
Link Plates Height	1.425 in
Weight	4.877 LB
EAN or UPC	97039177179
