CEM3774T

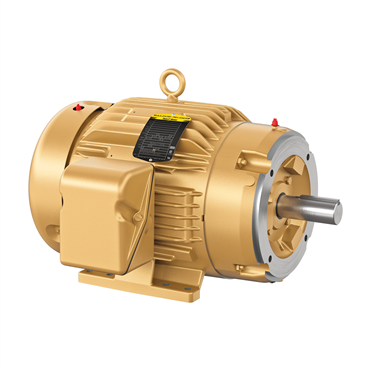

10 hp 215TC Frame Three Phase AC Motor

Item #101000881

Auto Replenish

each One-time purchase

Product Details

Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death
Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments

Specifications

Enclosure	TEFC
Type	0750M
Hz	60 Hz
Shaft Dia.	1.375 in
Voltage	575 V
RPM	1800
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Drive End Bearing	6307
Efficiency	91.7%
Mount Type	F1
Rated Efficiency	91.7 %
Washdown Duty	No
Useable at 208V	Yes
Efficiency Group	Premium Efficient
Base	Rigid
Service Factor	1.15
Frequency	60 Hz
Frame Size	215TC
Full Load rpm	1760 rpm
Synchronous	1800 rpm
Poles	4
Product Line	RG
Insulation Class	F
Shaft Diameter	1.38 in
Motor Shaft Size	1 3/8 in
Speed	1765 rpm
Motor Application	General Purpose
C Dimension	19.21 in
Inverter Duty	Inverter Ready
Frame Material	Iron
Brake Feature	No
BALD Family Names	Premium Efficient, C-Face, Nema Premium™
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Ambient Temperature	104 °F
Design	A
Power Factor	83
Mounting	C-Face - With Base
Mult. Sym.	L1
Voltage Rating	230/460
Conduit Box Material	Cast Iron
Multispeed	Single Speed
Full Load Current	24.6/12.3
Motor Shaft Length	3 3/8 in
VoltCode	E1
Mounting Style	F-1
Shaft Grounding	No
Shaft Rotation	Reversible
Full Load Pf	81
Frame	215TC
Full Load Amps	12.6
Phase	Three Phase
NEMA Design	B
Rotation	R
HP [Min]	10
Open End Bearing	6206
Duty Cycle	Continuous
Overall Length	19.2 in
HP	10
Full Load Efficiency	91.7 %
RefPicture	CEM
End Plate	C-Face
Weight	195.0 LB
EAN or UPC	781568134405
NSN Number	6105-01-356-9827
