CEWDM3710T

7 1/2 hp 213TC Frame Three Phase AC Motor

Item #101004061

Auto Replenish

each One-time purchase

Alternate Products

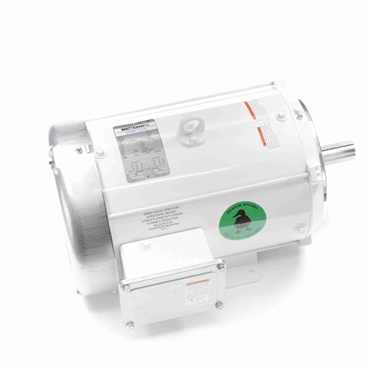

Marathon Electric Motors 140822.00

Washdown Duty AC Motor

Item #101393201

each

Compare

Product Details

Specifications

Open End Bearing	6206
Motor Application	Washdown Duty
Frame Material	Steel
Motor Shaft Length	3.12 in
RPM	1,800 rpm
Full Load Current	19/9.5
Voltage Rating	230/460
Power Factor	80
Useable at 208V	Yes
Mount Type	F1
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Frequency	60 Hz
Ambient Temperature	104 °F
Washdown Duty	Yes
RefPicture	CEWD
Speed	1770 rpm
Rated Efficiency	91.7 %
Inverter Duty	Inverter Ready
Duty Cycle	Continuous
Full Load Amps	10.2
Type	3744M
Mounting Style	F-1
Drive End Bearing	6307
Voltage	575 V
VoltCode	E1
Shaft Diameter	1.38 in
Mounting	C-Face - With Base
Phase	Three Phase
Rotation	R
Enclosure	TEFC
Poles	4
Shaft Dia.	1.375 in
Multispeed	Single Speed
Design	A
Insulation Class	F
Shaft Grounding	No
HP	7 1/2
Overall Length	19.78 in
Frame Size	213TC
Efficiency Group	Premium Efficient
Base	Rigid
NEMA Design	A
Hz	60 Hz
Brake Feature	No
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Conduit Box Material	Steel
Frame	213TC
Product Line	RG
Shaft Rotation	Reversible
C Dimension	19.78 in
Efficiency	91.7%
Synchronous	1800 rpm
Mult. Sym.	L1
End Plate	C-Face
Full Load rpm	1770 rpm
Full Load Efficiency	91.7 %
Full Load Pf	76
Motor Shaft Size	1 3/8 in
Service Factor	1.15
Weight	151.0 LB
EAN or UPC	781568462935
