EL3612T

5 hp 184T Frame Single Phase AC Motor

Item #101001191

Auto Replenish

each One-time purchase

Alternate Products

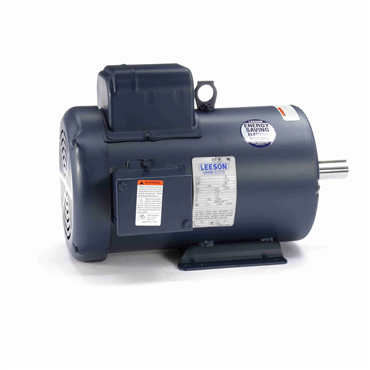

Marathon Electric Motors 131538.00

AC Motor

Item #104590297

each

Compare

Product Details

Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments
Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death

Specifications

Overall Length	18.06 in
End Plate	Standard
Multispeed	Single Speed
Power Factor	97
Useable at 208V	No
Poles	4
Rotation	R
Shaft Diameter	1.13 in
Full Load Pf	97
Shaft Dia.	1.125 in
Shaft Rotation	Reversible
Type	3646LC
Duty Cycle	Continuous
Mount Type	F1
Full Load Amps	19.1
Voltage	230 V
Epact Nominal Full Load Efficiency	87.5 %
Hz	60 Hz
Enclosure	TEFC
Shaft Grounding	No
Mounting	Rigid Base
Standard	CSA, CSA EEV, NEMA_PREMIUM, UR, NEMA
Frequency	60 Hz
NEMA Design	L
C Dimension	18.06 in
Insulation Class	F
Speed	1735 rpm
Conduit Box Material	Steel
Design	L
Frame Material	Steel
Washdown Duty	No
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Mounting Style	F-1
Motor Application	General Purpose
VoltCode	C
Ambient Temperature	104 °F
Rated Efficiency	86.5 %
BALD Family Names	Premium Efficient, Single Phase Motor
Motor Shaft Length	2 3/4 in
Base	Rigid
Full Load Efficiency	86.5 %
Drive End Bearing	6206
Synchronous	1800 rpm
Full Load rpm	1735 rpm
Service Factor	1
Efficiency	86.5%
Open End Bearing	6205
Frame	184T
Voltage Rating	230
Efficiency Group	Standard Efficient
Frame Size	184T
Product Line	RG
HP	5
RPM	1800 rpm
Motor Shaft Size	1 1/8 in
Brake Feature	No
Phase	Single Phase
Full Load Current	19.1
RefPicture	EL3605T
Mult. Sym.	L1
Weight	97.0 LB
EAN or UPC	781568172742
