VEM3555

2 hp 56C Frame Three Phase AC Motor

Item #101000560

Auto Replenish

each One-time purchase

Alternate Products

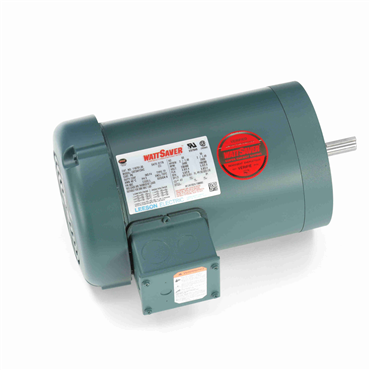

Leeson 116751.00

AC Three Phase ODP Motors

Item #101536240

each

Compare

Product Details

Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death
Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments

Specifications

Mount Type	F1
Overall Length	13.23 in
Shaft Grounding	No
HP	2
RefPicture	VEM
Power Factor	88
Full Load Efficiency	86.5 %
Shaft Diameter	0.63 in
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Speed	3490 rpm
NEMA Design	B
Mult. Sym.	K
Frame Material	Steel
Multispeed	Single Speed
Mounting	C-Face - Less Base
Efficiency Group	Premium Efficient
VoltCode	E
Design	B
Mounting Style	F-1
Enclosure	TEFC
Frequency	60 Hz
Shaft Dia.	0.625 in
Voltage Rating	460, 230, 208
Full Load rpm	3450 rpm
Synchronous	3600 rpm
Efficiency	85.5%
Open End Bearing	6203
Hz	60 Hz
Product Line	N
Full Load Current	5.3-5/2.5
Insulation Class	F
Washdown Duty	No
Shaft Rotation	Reversible
Useable at 208V	Yes
Voltage	230 V, 400 V
Service Factor	1.15
Type	3532M
Duty Cycle	Continuous
Full Load Pf	85
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Ambient Temperature	104 °F
End Plate	C-Face
Motor Application	General Purpose, Premium Efficient
Conduit Box Material	Steel
Frame	56C
Drive End Bearing	6205
Rotation	R
Full Load Amps	2.5
Brake Feature	No
Phase	Three Phase
BALD Family Names	Premium Efficient, C-Face, Nema Premium™
Poles	2
Base	No Mounting
Inverter Duty	Inverter Ready
Rated Efficiency	85.5 %
RPM	3600 rpm
Frame Size	56C
Weight	43.0 LB
EAN or UPC	781568308639
