VM3534

1/3 hp 56C Frame Three Phase AC Motor

Item #101002984

Auto Replenish

each One-time purchase

Alternate Products

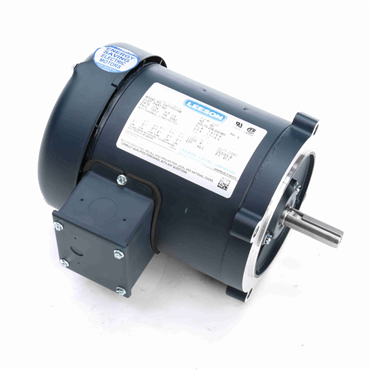

Leeson 101769.00

AC Motor

Item #102244099

each

Compare

Weg Electric Corp. .3318ES3E56CFL-S

General Purpose Motors - TEFC

Item #110950542

each

Compare

U.S. Motors U13S2ACR

General Purpose Three Phase TEFC Horizontal - Footless Motor

Item #101678613

each

Compare

Product Details

Specifications

Drive End Bearing	6203
Motor Shaft Size	5/8 in
Overall Length	11.35 in
Ambient Temperature	104 °F
RPM	1800
Full Load Current	1.4/0.7
Product Line	N
HP [Min]	1/4
Standard	CSA, UR, NEMA
Shaft Grounding	No
NEMA Design	B
Phase	Three Phase
Mount Type	F1
Frame	56C
Mounting Style	F-1
Insulation Class	B
Rated Efficiency	68 %
Base	No Mounting
Mult. Sym.	LS
Voltage	230 V, 460 V
Full Load rpm	1725 rpm
Washdown Duty	No
Type	3413M
Shaft Diameter	0.63 in
Power Factor	66
Duty Cycle	Continuous
Brake Feature	No
Design	B
Full Load Pf	57
Speed	1730 rpm
VoltCode	E
Efficiency Group	Standard Efficient
Frequency	60 Hz
Multispeed	Single Speed
Service Factor	1.35
Enclosure	TEFC
Efficiency	68%
Motor Application	General Purpose
Frame Size	56C
RefPicture	VM3534
End Plate	C-Face
Useable at 208V	Yes
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Motor Shaft Length	1 7/8 in
Poles	4
C Dimension	11.38 in
Mounting	C-Face - Less Base
Shaft Rotation	Reversible
HP	1/3
BALD Family Names	C-Face
Epact Nominal Full Load Efficiency	N/A
Shaft Dia.	0.625 in
Open End Bearing	6203
Voltage Rating	230/460
Full Load Efficiency	68 %
Rotation	R
Full Load Amps	0.8
Synchronous	1800 rpm
Hz	60 Hz
Substitute Motor	VM3538
Frame Material	Steel
Weight	21.0 LB
EAN or UPC	781568109519
