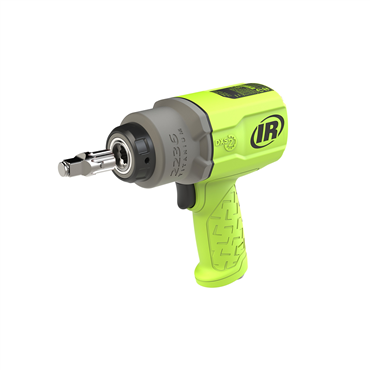

The Ingersoll Rand 2236QTiMAX Visibility Series, provides the power you know and trust in vibrant colors. Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years — and the performance, durability, and power of the 2236 1/2” pneumatic impact is no different. Our patented Drive Xchange System™ lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand — without losing a single ft-lb of power. Innovation: Ingersoll Rand’s patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.
features
Visibility: The green 2236QTIMAX-G impact wrench allows you to see it on the job and in the garage, while customizing your toolbox. Also available in orange and red.
Patented Drive Xchange System™: Helps you get more versatility, torque, and control out of your impact wrench. With 3/8, in 1/2 in, and 3/4 in drive options and 5 different anvil lengths, you can do more work with less equipment.
Powerful Versatility: 1,500 ft.-lbs. of breakaway torque from a unique patented motor design.
Patented Direct Greasing System: Greasing your tool has never been easier. Directly grease the tool’s hammer for more efficient operation and increased run time.
Reliable Performance: Stay working, and at peak power by quickly replacing worn or broken anvils. Titanium hammer case is light weight with unyielding durability.
Ergonomic: Smaller, lighter and better balanced design under 4.5 lbs. and 7.4 in overall length.
Quiet: 4 decibels quieter than the 2235TIMAX for a more user-friendly environment.
Drive Xchange System (TM) Anvil, Quiet Tool, Titanium Hammer case
Impact Mechanism
Twin Hammer
Warranty
2-Year
Reverse Torque [Max]
1000 ft-lb
Standard Bolt Capacity
0.75 in
Power Source
Air Powered
Motor
Reverse Bias
Average Air Consumption
9 cfm, 255 lpm
Width
2.9 in
Air Pressure
90 psi
Housing Material
Impact and Chemical Resistant Composite Housing
Actuation Type
Trigger
Length
7.36 in
Side to Center Distance
1.45 in
Fastening Torque
900 ft-lb
Blows/Minute
1350
Drive Size
1/2 in
Retainer Type
Friction Ring
Exhaust Location
Bottom
Handle Type
Pistol Grip
End Plates
Steel
Speed Setting
Variable Speed
Vibration Level
11.4 m/s2
Impacting Sound Pressure
94.2 / 105.2 A
Duty Rating
Heavy Duty
No. of Power Settings
3
Air Consumption @ Load
36 cfm, 1090 lpm
Hammer Case
Titanium
Free Speed [Max]
7500 rpm
Air Inlet
1/4 in NPT
Anvil Length
Standard
Vanes
6
Drive Type
Square
Standard
ISO 11148-6, Cagi B186, ISO 28927-2, ISO 15744
Color
Green
Vibration Uncertainy (K)
4.3 m/s2
Breakaway Torque
1500 ft-lb
Power to Weight Ratio (Nut-Busting Torque/Weight)
339 ft-lb/lb
Bolt Diameter [Max]
1 1/4 in
Hose Size [Min]
3/8 in
Height
7.34 in
Free Speed Sound Pressure
96.4 / 107.4 A
Weight
4.5 LB
EAN or UPC
663023175287
