08A16

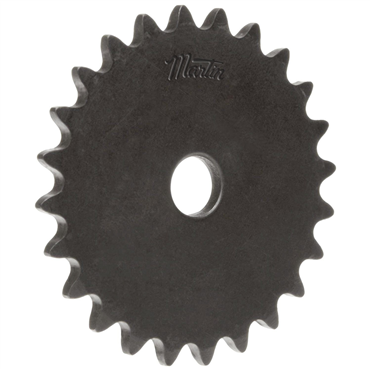

Metric Roller Chain Sprocket

Item #100966138

10 mm Minimum Bore

+ Show More

Auto Replenish

each One-time purchase

Product Details

Maximum bores shown will accommodate standard keyseat and setscrew over keyseat. Slightly larger bores are possible with no keyseat, shallow keyseat, or setscrew at an angle to keyseat.

Manufactured of high carbon steel
Precise machining and processes ensure consistent finish and high quality
Bores are concentric to pitch line, minimizing run out
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain

Specifications

Chain No.	08B, 08B-1
Series	A
Stock Bore Size	10 mm
Caliper Diameter	7.65 mm
Pitch Diameter	65.1 mm
Bore Range [Max]	N/A
Hardened Teeth	Without Hardened Teeth
Martin No.	08A16
Pitch Dia.	2.563 in
Material External Use	Steel
Pitch Diameter [Min]	65.1 mm
Bushing Bore [Min]	0.394 in
No. of Strands Across	1
Outside Dia. [Min]	72.46 mm
Chain Pitch	12.7 mm
Material Internal Use	Carbon Steel
No. of Teeth Rows Strands	1
Family Name	No. 08 - 12.700 mm Pitch - Single - A
Bore Size [Min]	0.394 in
Root Diameter	56.6 mm
Single Strand Tooth Thickness	0.29 in
Chain Sprocket Number	08B
Bore Range [Min]	10 mm
Hub Dia.	N/A
Chain Sprocket Pitch	0.5 in
Bushing Bore Size [Min]	0.394 in
Sprocket Style	A
Pitch Root Diameter	56.6 mm
Bore Type	Finished Bore
Outside Dia.	72.46 mm
Bore Style	Minimum Bore
Hub Projection	N/A
Inch/Metric	Metric
Length Through Bore	0.265 in
Material	Steel
Width Across Teeth	5.31 mm
Pin Diameter	8.509 mm
Hub Length Thru	N/A
O.D.	2.853 in
Width Across Teeth Rows	0.265 in
Construction Internal	Solid
No. of Teeth	16
Weight	0.15 LB
EAN or UPC	697950396910
