35H23

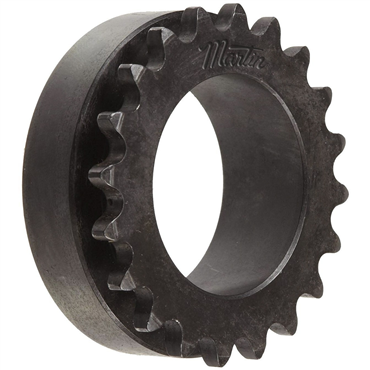

Single Strand Sprocket; 35 Chain Size; 23 Teeth; Requires H Split Taper Bushing

Item #100970702

Auto Replenish

each One-time purchase

Alternate Products

Browning 35H23

Single Strand Sprocket; 35 Chain Size; 23 Teeth; Requires H Split Taper Bushing

Item #100931798

each

Compare

Product Details

Tolerances meet or exceed ANSI standards
Manufactured of high carbon steel
Precise machining and processes ensure consistent finish and high quality
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
Bores are concentric to pitch line, minimizing run out
Interchangeable with other manufacturers’ split-taper bushings

Specifications

Caliper Diameter	2.5476 in
Bore Type	Bushed
Bushing Series	H
O.D.	2.953 in
Inch/Metric	Inch
Bushing Bore Size [Min]	0.375 in
Bushing Bore [Max]	1.5 in
Hub OD @ Recess	2.323 in
Hub Length	0.71 in
Overall Length Less Threads	N/A
Bushing Bore Size [Max]	1.5 in
Length Through Bore	0.875 in
Hardened Teeth	Without Hardened Teeth
Hub Recess Width	0.188 in
Bore Size [Min]	0.375 in
Hub O.D.	2.5 in
No. of Teeth Rows Strands	1
Bushing Bore [Min]	0.375 in
Sprocket Style	B
Hub Recess Depth	0.088 in
Chain Sprocket Number	35
Outside Dia.	2.953 in
Chain Sprocket Pitch	0.375 in
No. of Strands Across	1
Hub Dia.	2.51 in
Overall Length	1.5 in
Material Internal Use	Carbon Steel
Pitch Dia.	2.754 in
Outside Dia. [Min]	2.953 in
Single Strand Tooth Thickness	0.168 in
Type	3
Material	Steel
Construction Internal	Solid With Recess Groove
Bore Size [Max]	1.5 in
Chain No.	35
Width Across Teeth	0.168 in
No. of Teeth	23
Hub Projection	0.71 in
Chain Pitch	0.375 in
Material External Use	Steel
Bushing Type	Split Taper
Tooth Width	0.168 in
Pitch Diameter	2.754 in
Hub Recessed	1
Weight	0.72 LB
EAN or UPC	697950097329
