40A84

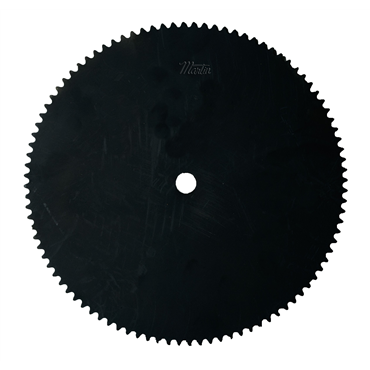

A Plate Reborable Sprocket

Item #100806846

0.72 in Minimum Bore

12.83 in Maximum Bore

+ Show More

Auto Replenish

each One-time purchase

Alternate Products

Dodge 40A84

A Plate Sprocket

Item #100947429

each

Compare

Product Details

Maximum bores shown will accommodate standard keyseat and setscrew over keyseat. Slightly larger bores are possible with no keyseat, shallow keyseat, or setscrew at an angle to keyseat.

Specifications

Hub Projection	N/A
Material Internal Use	Carbon Steel
Bore Style	Minimum Bore
Pitch Diameter	13.37 in
Material	Steel
No. of Strands Across	1
Width Across Teeth	0.28 in
Material External Use	Steel
Inch/Metric	Inch
Sprocket Style	A
Bore Range [Min]	0.72 in
Martin No.	40A84
Stock Bore Size	0.719 in
No. of Teeth	84
Caliper Diameter	13.06 in
Pitch Dia.	13.372 in
Hardened Teeth	Without Hardened Teeth
O.D.	13.663 in
Outside Dia.	13.66 in
Hub Length Thru	N/A
Bore Size [Min]	0.719 in
Outside Dia. [Min]	13.66 in
Family Name	No. 40 - 1/2 in Pitch - Single - A
Chain Sprocket Pitch	0.5 in
No. of Teeth Rows Strands	1
Chain No.	40
Construction Internal	Solid
Finished Bore Size	0.719 in
Bore Range [Max]	12.83 in
Bore Type	Finished Bore
Hub Dia.	N/A
Bushing Bore [Min]	0.719 in
Chain Sprocket Number	40
Series	A
Bushing Bore Size [Min]	0.719 in
Pitch Diameter [Min]	13.37 in
Single Strand Tooth Thickness	0.284 in
Length Through Bore	0.265 in
Chain Pitch	0.500 in
Weight	10.34 LB
EAN or UPC	697950007007
