MPS247N

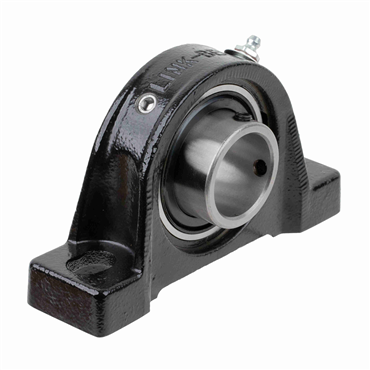

2 15/16 in Medium Duty Cast Iron 2 Bolt Pillow Block

Item #111362400

Auto Replenish

each One-time purchase

Product Details

Specifications

I.D.	2 23/64 in
Base to Centerline Height	3 1/2 in
Static Load Rating [Max]	11400 lbf
Shaft Dia.	2.9375 in
Base Width	3 in
Vibration Frequency Roller Spin	0.047 cps
Shaft Locking	Setscrew
Dynamic Load Rating	17420 lb
Bolt Hole Length	1 3/4 in
Lubrication Type	EXXON RONEX MP STD
Primary Seal	Buna Single Lip Contact Seal
Duty Type	Medium
Grease Fitting Size	1/8 NPT
Housing Height	6 7/8 in
Housing Material	Cast Iron
Temperature [Max]	225 °F
Vibration Frequency Fundamental Train	0.007 cps
Locking Type	Setscrew Locking
Bolt Size	7/8 in
Bolt Hole Spacing	9 1/4 in
Duty	Medium-Duty
Center of Bearing to Front of Inner Ring	1 1/2 in
Length Through Bore	2.35938 in
Mounting Bolt Hole Slot Length	1 3/4 in
Coating	Powder Coated
Mounting Bolt Size	7/8 in
Locking Device	Setscrew Locking
Vibration Frequency Outer Ring Defect	0.076 cps
Bearing Type	Ball Bearing
Retainer Type	Nylon
Mounting Pad Width	3 in
Mounting Pad Height	1 9/32 in
Temperature Range [Max]	225 °F
Setscrew Torque	290-325 in/lbs
Mounting Pad Length	12 in
Size Code	216
Base Height	1 9/32 in
No. of Bolts	2
Vibration Frequency Inner Ring Defect	0.107 cps
Internal Clearance	C3 Standard
Distance Between Bolt Holes	9 1/4 in
Fixed Expansion	Fixed
Static Load Rating	11400 lb
Series	200
Seal Type	Single Lip Contact Seal
Speed [Max]	2700 rpm
Handle / Housing Material	Cast Iron
Inch/Metric	Inch Bore
Bearing Design	Non-Expansion
Flange Type	2-Bolt Flange
Weight	21.0 LB
EAN or UPC	662864807272
