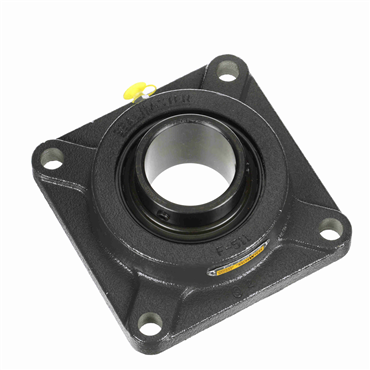

Cast Iron 4-Bolt Flange Set Screws Lock Standard Duty Flange Unit

Sealmaster

SF-39DRT

Cast Iron 4-Bolt Flange Set Screws Lock Standard Duty Flange Unit

Item #101184242

4-Bolt Flange Type
Cast Iron Housing Material
Black Oxide Bearing Insert Coating
Set Screw Locking Type

Auto Replenish

each One-time purchase

Product Details

4-Bolt Flange Type
Cast Iron Housing Material
Black Oxide Bearing Insert Coating
Set Screw Locking Type

features

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation

options

High Contamination

Specifications

Locking Device	Setscrew Locking Collar
Overall Length (in)	6.875
Overall Width	6.875 in
Inner Ring OD (in)	2.984375
Mounted Unit Duty	High Contamination Duty
Retainer Type	Land Riding
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Maximum Operating Temperature	220
Duty Series	Standard
Housing Construction	One Piece
Bearing Design	Non-Expansion
Measure Units	Inch
Inner Ring O.D.	2.984 in
Overall Width (in)	6.875
Bolt Center-to-Center Length (in)	5.6250
Centerline to Front Face	1.563 in
Radial Dynamic Load Capacity (lb)	11789
Internal Clearance	Standard
End Cap	No
Radial Dynamic Load Capacity	11789 lb
Seal Type	Multi-Lip Contact
Housing Length	6 7/8 in
Bore Shape	Straight
Operating Temperature [Max]	220 °F
Overall Length	6.875 in
Relubricatable	Yes
Speed [Max]	650 rpm
Replaceable Insert	Yes
Insert No.	2-27 DRT
Housing Material	Cast Iron
Radial Static Load Capacity (lb)	8150
Bore Size - Inch	2.438
Flange Type	4-Bolt Flange
Bolt Center-to-Center Length	5.625 in
Length Through Bore (in)	2.984
Bolt Size (in)	0.6250
Lubrication	Lithium Complex NLGI 2 Grease - 100% Fill
Foot Height (in)	0.8125
Bolt Size	0.625 in
Platform	Gold Line Ball Bearing
Overall Height (in)	2.6875
Inner Race Length	2.984 in
Housing Color	Gray
Foot Height	0.813 in
Bearing Insert Coating	Black Oxide
Bearing Type	Ball Bearing
Expansion	No
Bolt Hole Spacing	5 5/8 in
Overall Height	2.688 in
Housing Base	Solid
Shaft Dia.	2.4375 in
Housing Width (in)	6.875
Series	SF
Special Features	High Contamination Duty
Inner Race Length (in)	2.984
Bolt Circle Dia.	N/A
Insert Material	52100 Bearing Steel, Black Oxided
Bore Size	2.438 in
Angle of Misalignment	±2°
Inch/Metric	Inch
Pilot Configuration	No Pilot
End Type	Open End
Inner Race Heat Treat Method	Zone-Hardened
Housing Width	6.875 in
Centerline to Front Face (in)	1.5625
Locking Type	Set Screws
Weight	11.0 LB
EAN or UPC	662461327302
