Fixed Diameter Sheaves - Bushing Type

Manufactured for high tolerance, Applied carries bushing type fixed diameter sheaves for replacement and new applications. Our bushing type sheaves are sourced from our network of trusted brands, featuring manufacturers like ContiTech, Dodge, Emerson and Martin Sprocket & Gear.

Showing 1 - 20 of 10,651 items

Dodge

5B250 E

5B250 E | Q-DÂ® Sheave for A & B Belt

Item #101946110

5 Grooves
25.35" Outside Diameter
B (5L) Belt Size
E Bushing Required
7/8" to 3 1/2" Bore Range

each

Compare

Martin

3 5V 490 SDS

3 5V 490 SDS | Fixed Diameter Three Groove QD Sheave

Item #101451459

Number of Grooves: 3
5V Belt Size
QD Bushing Required
4.90 in OD

each

Compare

Dodge

4/3V3.65SH

4/3V3.65SH | Q-DÂ® Sheave for 3V Belt

Item #100944846

Number of Grooves: 4
3V Belt Size
QD Bushing Required
3.65 in OD

each

Compare

Dodge

2B94 SK

2B94 SK | Q-DÂ® Sheave for A & B Belt

Item #100945256

2 Grooves
9 3/4" Outside Diameter
A (4L) or B (5L) Belt Size
SK Bushing Required
1/2" to 2 1/2" Bore Range

each

Compare

Dodge

3/5V9.25SF

3/5V9.25SF | Fixed Diameter Three Groove QD Sheave

Item #100944942

Number of Grooves: 3
5V Belt Size
QD Bushing Required
9.25 in OD

each

Compare

Martin

2 B 34 SH

2 B 34 SH | Conventional Stock QD Sheave

Item #100786003

2 Grooves
3 3/4" Outside Diameter
A (4L) or B (5L) Belt Size
SH Bushing Required
1/2" to 1 11/16" Bore Range

each

Compare

Dodge

2B34 SH

2B34 SH | Q-DÂ® Sheave for A & B Belt

Item #100945231

2 Grooves
3 3/4" Outside Diameter
A (4L) or B (5L) Belt Size
SH Bushing Required
1/2" to 1 5/8" Bore Range

each

Compare

Martin

BK50-H

BK50-H | Cast Iron 4L, 5L, A, B Belt Cross 4.75 in OD 2 Grooves Sheave

Item #102112327

4L, 5L, A, B Belt Cross Section
4.75 in Outer Diameter
Bushed Bore
0.875 in Face Width
2 Groove

each

Compare

Martin

2 B 62 Q

2 B 62 Q | 114238398

Item #114238398

CONVENTIONAL MST SHEAVE

each

Compare

Martin

5 B 56 SK

5 B 56 SK | Cast Iron AB Belt Cross 5.95 in OD 5 Grooves Sheave

Item #100786699

AB Belt Cross Section
5.95 in Outer Diameter
4 in Face Width
5 Groove

each

Compare

Martin

2BK40-H

2BK40-H | Cast Iron 4L, 5L, A, B Belt Cross 3.95 in OD 2 Grooves Sheave

Item #102110762

4L, 5L, A, B Belt Cross Section
3.95 in Outer Diameter
Bushed Bore
1.75 in Face Width
2 Groove

each

Compare

Martin

3 C 100 E

3 C 100 E | 100786240

Item #100786240

CONVENTIONAL STOCK QD SHEAVE 3 GROOVES
10.4" OUTSIDE DIAMETER
C BELT SIZE
E BUSHING REQUIRED
7/8" TO 3 1/

each

Compare

Dodge

3B110 SK

3B110 SK | Q-DÂ® Sheave for A & B Belt

Item #100945286

3 Grooves
11.35" Outside Diameter
A (4L) or B (5L) Belt Size
SK Bushing Required
1/2" to 2 1/2" Bore Range

each

Compare

Dodge

1A4.2B4.6 1610

1A4.2B4.6 1610 | Taperlock Sheave for A & B Belts

Item #100944486

1 Groove
4.95" Outside Diameter
A (4L) or B (5L) Belt Size
1610 Bushing Required
1/2" to 1 11/16" Bore Range

each

Compare

Dodge

5/5V10.9E

5/5V10.9E | Fixed Diameter Five Groove QD Sheave

Item #100945008

Number of Grooves: 5
5V Belt Size
QD Bushing Required
10.90 in OD

each

Compare

Martin

8 5V 1030 F

8 5V 1030 F | Fixed Diameter Eight Groove QD Sheave

Item #100787010

5V Belt Size
8 Number of Grooves
10.3 in Outside Diameter
QD Bushing Type
1 in Minimum Bore Range

each

Compare

Martin

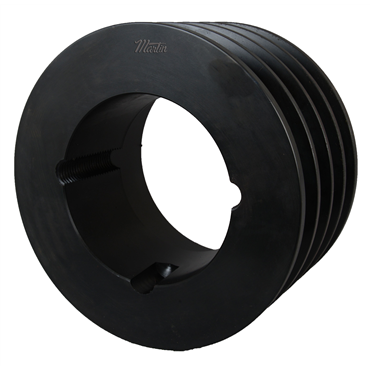

4 B 60 TB

4 B 60 TB | A-B Series Combination Groove Conventional Taper Bushed Sheave

Item #100786471

A/B Belt Size
4 Number of Grooves
6.35 in Outside Diameter
Taperlock Bushing Type
0.5 in Minimum Bore Range

each

Compare

Martin

1 B 42 TB

1 B 42 TB | A-B Series Combination Groove Conventional Taper Bushed Sheave

Item #100785610

A/B Belt Size
1 Number of Grooves
4.55 in Outside Diameter
Taperlock Bushing Type
0.5 in Minimum Bore Range

each

Compare

Martin

4 5V 1500 E

4 5V 1500 E | Fixed Diameter Four Groove QD Sheave

Item #100786358

5V Belt Size
4 Number of Grooves
15 in Outside Diameter
QD Bushing Type
1 in Minimum Bore Range

each

Compare

Dodge

4/5V8.0E

4/5V8.0E | Fixed Diameter Four Groove QD Sheave

Item #100944970

Number of Grooves: 4
5V Belt Size
QD Bushing Required
8.00 in OD

each

Compare
