- Steel Material
- Minimum Plain Bore Type
description
- Spur gears are designed to transmit motion and power between parallel shafts. Configurations include spur, rack, pinion wire, stem pinions, and internal gears
- most with a selection of bores, keyways, and setscrews. Fine-pitch gears are available in plastic, brass, stainless steel, and steel. Heavier pitch spurs are available in steel and cast iron. Styles include plain, web, web with lightening holes, or spoked. Change gears have consecutive numbers of teeth for a variety of ratios.
features

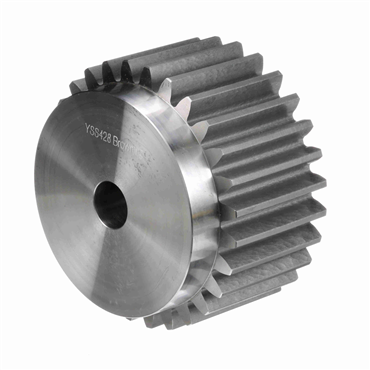

- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think "Special" Gears - Think Browning
| Pitch Diameter (in) | 7 |
| Length Through Bore | 4.500 in |
| Bore (Min) (in) | 1.3125 |
| Bushing Bore Size (in) | 1.3125 to 4.5000 |
| Diametral Pitch | 4 |
| Pressure Angle | 20 degrees |
| Face Width (in) | 3.5 |
| Overall Length (in) | 4.5 |
| Outside Diameter (in) | 7.5 |
| Standards Met | AGMA |
| No. of Teeth | 28 |
| Bore (Max) (in) | 4.5 |
| Hub Projection (in) | 1 |
| Length Through Bore (in) | 4.5 |
| Gear Construction | Plain |
| Bore Type | Minimum Plain Bore |
| Number of Teeth/Threads | 28 |
| Hub Diameter (in) | 6.25 |
| Bore Size (in) | 1.3125 |
| Pitch Diameter | 7 in |
| Material | Steel |
| Weight | 44.64 LB |
| EAN or UPC | 662289127382 |
