056B17T20

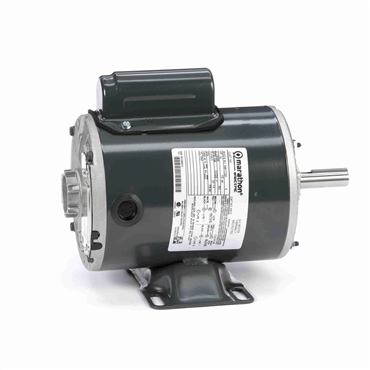

0.5 Hp 60 Hz 1800 rpm Totally Enclosed Fan Cooled Single Phase General Purpose Motor

Item #113091673

Auto Replenish

each One-time purchase

Product Details

Double-shielded bearings extend the service life of the motor.
EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
Shaft flingers protect bearings from damage caused by dirt and rain.
Condensation drains allow the motor to expel and drain built-up moisture.

Specifications

DE Bearing Size	6203
Frame	56
HP	0.5
Hz	60
DE Bearing Type	Ball
Enclosure	TEAO
Amps	4.6/2.3
Shaft Diameter	0.625 in
KVA Code	F
Power Factor	93.6
Duty	Continuous
Assembly/Box Mounting	F1 Only
Speed [Max]	1725 rpm
Shaft Type	T
ODE Bearing Type	Ball
Mounting Type	Rigid Base
Insulation Class	B
Voltage	115/230 V
Frame Material	Rolled Steel
Frame Length	6.5 in
No. of Phases	Single
Shaft Extension	1.97 in
ODE Bearing Size	6203
Motor Orientation	Horizontal
Electrical Type	Capacitor Start Capacitor Run
Service Factor	1
No. of Poles	4
No. of Speeds	1
Overload Protector	Automatic
Starting Type	Across The Line
Efficiency	78.7
IP Rating	IP43
Standard	CSA, UL Recognized
Rotation	Selective Counterclockwise
Ambient Temperature Range [Max]	104 °F
Weight	20.0 LB
EAN or UPC	722856028105
