056T8O5302

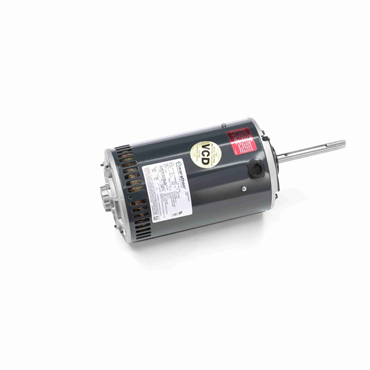

1 Hp 60 Hz 900 rpm Totally Enclosed Fan Cooled Three Phase Refrigeration Motor

Item #113091698

Auto Replenish

each One-time purchase

Product Details

70°C ambient
Enclosed shaft end bracket, vented frame
Automatic reset thermal protector
Nameplate 60/50 hertz 190/380 volts, at next lower HP
Double sealed ball bearings
5/8” Dia. x 5” long shaft with flat and keyway
Threaded lead exit
Patented VCD™ - Voltage Change Deviceh Locating screws 90 degrees apart, 3.33” from outer edge of shaft slinger
Hubs on both ends will accept resilient base kits.

Specifications

No. of Poles	8
Frame Length	9.56 in
Standard	CSA, UL Recognized
Shaft Type	Single Special Extension
No. of Phases	Three
Insulation Class	H
Hz	60
Voltage	200-230/460 V
ODE Bearing Type	Ball
Efficiency	74.5
Motor Orientation	Horizontal
Assembly/Box Mounting	F1 Only
Speed [Max]	850 rpm
Shaft Diameter	0.625 in
Starting Type	Across The Line
No. of Speeds	1
Resistance Main	17.6
ODE Bearing Size	6203
HP	1
Rotation	Reversible
Power Factor	52.5
Mounting Type	Round Belly Band
Shaft Extension	5.06 in
DE Bearing Type	Ball
Frame Material	Rolled Steel
Frame	56Y
DE Bearing Size	6203
Amps	5.3-5.3/2.7
Electrical Type	Squirrel Cage Induction Run
KVA Code	J
Service Factor	1
Overload Protector	Automatic
Enclosure	OAO
Duty	Continuous
IP Rating	IP10
Ambient Temperature Range [Max]	158 °F
Weight	46.0 LB
EAN or UPC	722856049025
