213TTWD14002

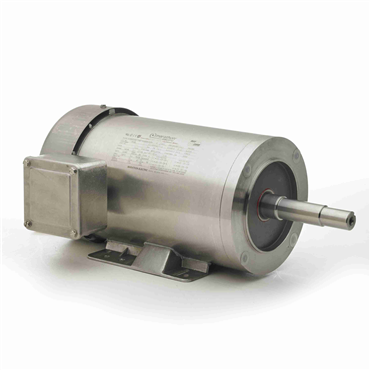

7.5 Hp 60 Hz 3600 rpm Drip Proof Three Phase General Purpose Motor

Item #114959882

Auto Replenish

each One-time purchase

Product Details

Specifications

Hz	60
Frame	213JM
ODE Bearing Size	6207
HP	7.5
DE Bearing Size	6209
Poles	2
Mounting Type	Rigid Base
Assembly/Box Mounting	F1 Only
Shaft Type	JM
Insulation	F
Resistance Main	1.45
Duty	Continuous
DE Bearing Type	Ball
Efficiency	88.5
Amps	18.4/9.2
Full Load Amps	18.4/9.2
KVA Code	G
Power Factor	85.5
Speed [Max]	3530 rpm
Service Factor	1.15
NEMA Design	B
Open End Bearing	6207
No. of Poles	2
Rotation	Reversible
Motor Application	Washdown Duty
Motor Orientation	Horizontal
No. of Phases	Three
Starting Type	Line Or Inverter
IP Rating	IP56
Drive End Bearing	6209
Standard	CE, CSA, UL Recognized
Mounting	Rigid Base
Enclosure	TEFC
Shaft Diameter	1.375 in
Frame Material	Stainless Steel
Shaft Extension	4.28 in
ODE Bearing Type	Ball
Ambient Temperature Range [Max]	104 °F
Enclosure Designation	Totally Enclosed Fan Cooled
Voltage Rating	230/460
Voltage	230/460 V
Phase	Three Phase
No. of Speeds	1
Electrical Type	Squirrel Cage Inverter Rated
Insulation Class	F
Weight	0.0 LB
EAN or UPC	722856031112
