215TTDW7204

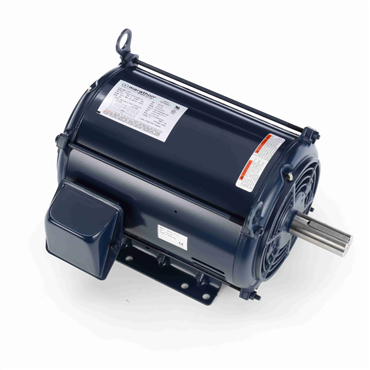

5,2.22 Hp 60 Hz 1800 rpm Drip Proof Three Phase Other Purpose Motor

Item #113091580

Auto Replenish

each One-time purchase

Product Details

Specifications

Frame	215T
Motor Orientation	Horizontal
NEMA Design	2VT
No. of Speeds	2
Service Factor	1.15
Shaft Extension	3.47 in
Enclosure	DP
KVA Code	N
HP	5,2.22
Rotation	Fixed Clockwise
IP Rating	IP22
Shaft Type	T
Electrical Type	Squirrel Cage Induction Run
Duty	Continuous
Speed [Max]	1775 rpm
Frame Length	11.15 in
Starting Type	Across The Line
ODE Bearing Size	6206
Power Factor	78.9
ODE Bearing Type	Ball
Mounting Type	Rigid Base
No. of Poles	4/6
Ambient Temperature Range [Max]	104 °F
No. of Phases	Three
Efficiency	85.5
Hz	60
Amps	8.65-8.2,7.8-7.4
Shaft Diameter	1.375 in
Resistance Main	0.78500000000000003
Assembly/Box Mounting	F1/F2 CAPABLE
Frame Material	Rolled Steel
Insulation Class	F
Voltage	200-230 V
DE Bearing Size	6307
DE Bearing Type	Ball
Standard	CE, CSA, UL Recognized
Weight	119.0 LB
EAN or UPC	722856042460
