254THEN8059

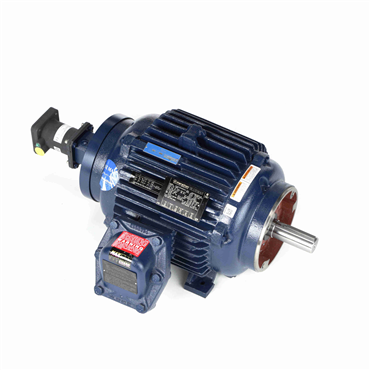

10 Hp 60 Hz 1800 rpm Totally Enclosed Air Over Three Phase Explosion Proof Motor

Item #113091856

Auto Replenish

each One-time purchase

Product Details

Specifications

Shaft Type	T
Standard	UL Listed And CSA Certified
KVA Code	J
ODE Bearing Size	6309
Frame	254TC
No. of Poles	4
DE Bearing Size	6309
Power Factor	75
Hazardous Location	DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C
Assembly/Box Mounting	F1/F2 CAPABLE
No. of Phases	Three
HP	10
Electrical Type	Squirrel Cage Inverter Duty
Shaft Extension	3.75 in
NEMA Design	INV
Resistance Main	0.67500000000000004
Frame Length	1.5 in
Speed [Max]	1775 rpm
Duty	Continuous
Amps	27/13.5
Enclosure	EPNV
Frame Material	Cast Iron
Mounting Type	Rigid Base
Ambient Temperature Range [Max]	104 °F
Starting Type	Inverter Only
Overload Protector	Thermostat
DE Bearing Type	Ball
Shaft Diameter	1.625 in
No. of Speeds	1
Motor Orientation	Horizontal
Efficiency	91.7
Insulation Class	F
Rotation	Reversible
ODE Bearing Type	Ball
Voltage	230/460 V
Hz	60
Service Factor	1
IP Rating	IP54
Weight	394.0 LB
EAN or UPC	722856025593
