N182A

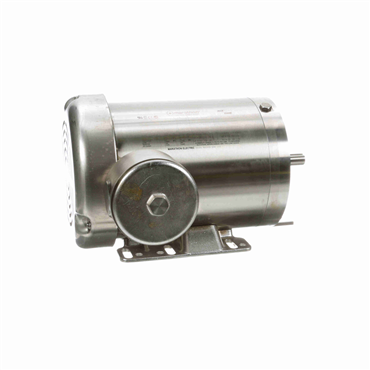

AC Motor

Item #114959881

Auto Replenish

each One-time purchase

Product Details

Suitable for use on VFD, 10:1 Variable torque, 10:1 (TEFC) or 1000:1 (TENV) Constant Torque, 1.0 Service Factor
MAX GUARD® Class F insulation system
1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
Double sealed ball bearings with moisture resistant, high temperature grease
300 Series Stainless steel external construction: frame, endshields, shaft,conduit box, mounting base and hardware for superior corrosion resistance
Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator
100% Paint-free construction. F1 mounting only, cannot reassemble to F2
Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals
Hydrophobic breather in OP endshield and conduit box equalize air pressure. 56H, 143T, and 145T combination base with 12 mounting holes
Will become build-up item when current stock is gone

Specifications

No. of Speeds	1
Hz	60
Duty	Continuous
Insulation Class	F
Power Factor	61
Mounting	Rigid Base
Standard	CE, CSA, UL Recognized
Open End Bearing	6205
Service Factor	1.15
Frame	56HC
Ambient Temperature Range [Max]	104 °F
Poles	6
HP	1
Phase	Three Phase
Frame Length	7 in
Voltage Rating	208-230/460
Enclosure Designation	Totally Enclosed Fan Cooled
Efficiency	77
ODE Bearing Size	6205
Motor Orientation	Horizontal
Voltage	208-230/460 V
NEMA Design	B
KVA Code	J
ODE Bearing Type	Ball
DE Bearing Type	Ball
Full Load Amps	3.8-4/2
Rotation	Reversible
Mounting Type	Rigid Base
Drive End Bearing	6205
Amps	3.8-4/2
Enclosure	TEFC
DE Bearing Size	6205
No. of Phases	Three
Starting Type	Line Or Inverter
Speed [Max]	1140 rpm
Motor Application	Washdown Duty
Shaft Diameter	0.625 in
Shaft Extension	1.88 in
Assembly/Box Mounting	F1 Only
Frame Material	Stainless Steel
IP Rating	IP56
Insulation	F
Electrical Type	Squirrel Cage Inverter Rated
Shaft Type	NEMA 56
No. of Poles	6
Weight	0.0 LB
EAN or UPC	722856131515
