CYR 1 1/8 S CR

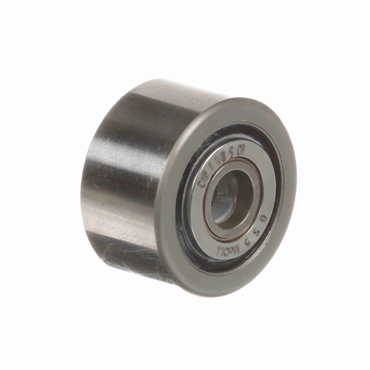

CAMROL® Cylindrical Yoke Mount Sealed Cam Follower

Item #101087949

Auto Replenish

each One-time purchase

Alternate Products

Smith Bearing YR-1-1/8-X-SS

YR-X-SS Series Sealed Stainless Steel Yoke Roller

Item #101660181

each

Compare

Product Details

Specifications

Roller Shape	Cylindrical
Inner Ring	With Inner Ring
Platform	CAMROL®
Limiting Speed	3400 rpm
Roller Diameter - Inch	1.125
Bore Diameter - Inch	0.3125
Enclosure	Sealed
Roller Diameter	1.125 in
Oil Hole Diameter	0.094 in
Lubrication Hole Location	Inner Ring
Endplate Diameter	0.688 in
Overall Width - Inch	0.6875
Bearing Type	Full Compliment Needle Rollers
Tolerance Class	P0
Boss Diameter [Min]	0.641 in
Dynamic Load Rating (lb)	2000
I.D.	0.313
Operating Temperature [Max]	250 °F
Inch/Metric	Inch
O.D. Configuration	Cylindrical
Rolling Element	Needle Roller - Full Complement
Roller Material	Stainless Steel
Material	440C Stainless Steel
Oil Hole Diameter - Inch	0.094
Roller Width - Inch	0.625
Roller Type	Cylindrical
Overall Width	0.688 in
Series	CYR-S CR
Dynamic Load Rating	2000 lb
Relubricatable	Yes
Static Load Rating	5400 lb
Roller Width	0.625 in
Roller Dia.	1.125 in
Minimum Boss Diameter - Inch	0.641
Operating Temperature [Min]	-20 °F
Weight	0.147 LB
EAN or UPC	726166118297
