MPS6215

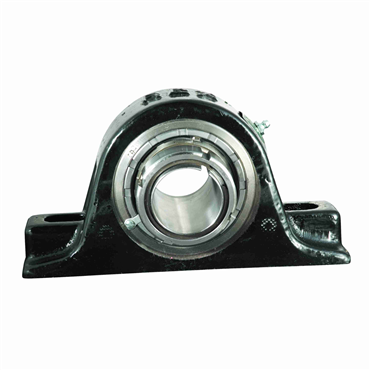

Cast Iron Shurlok Tapered Adapter Spherical Roller Solid-Housed Pillow Block

Item #101374920

Auto Replenish

each One-time purchase

Product Details

Specifications

Vibration Frequency Roller Spin	0.0591 cps
Housing Material	Cast Iron
Volume	2.301 GLL
RPM [Max]	1700 rpm
Center Line to Base Dimension [Min]	3 1/2 in
Flange Type	2-Bolt Flange
Bearing Design	Expansion
Vibration Frequency Inner Ring Defect	0.1701 cps
Static Load Rating	71500 lb
Handle / Housing Material	Cast Iron
Pillow Block Type	Thru-Bolt
Base Width	3 7/8 in
Retainer Type	Engineered Polymer
Base Height	2 1/16 in
Shaft Locking	Shurlok Tapered Adapter
Seal Type	Heavy Contact Seals, Spring Loaded Heavy Contact Seals
Housing Height	7 3/16 in
Bearing Type	Spherical Roller
Grease Fitting Size	1/8 NPT
Base Length	13 in
Bolt Hole Spacing	9 3/4 in
Temperature Range [Max]	225 °F
Radial Dynamic Load Capacity	57750 lb
Lubrication Type	Exxon Ronex MP Std
Vibration Frequency Fundamental Train	0.0072 cps
Bolt Holes	2
Shaft Dia.	2.9375 in
Locking Device	Shurlok Adapter Mounted
Housing Construction	1 Piece
Size Code	9
Series	6000
Primary Seal	Buna Spring Loaded Lip Seal
Length Through Bore	4.53125 in
Mounted Unit Duty	Heavy-Duty
Vibration Frequency Outer Ring Defect	0.1299 cps
Threaded Cover Kit	TC9
Housing Coating	Powder Coated
Lubrication	Exxon Ronex MP
Mounted Clearance	C3 Standard
End Type	Open End
Bolt Size	7/8 in
Collar O.D.	4 3/32 in
Bolt Hole Length	1 5/8 in
Inch/Metric	Inch
Weight	40.4 LB
EAN or UPC	793699906264
