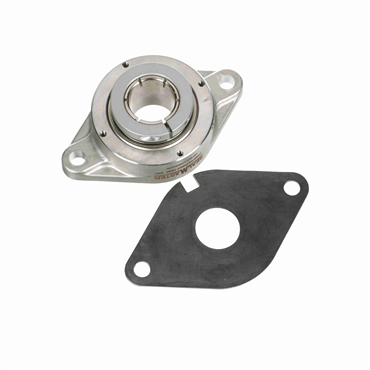

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
options
Corrosion Resistant - Reduced Maintenance - Lubed for Life
Bearing Design
Non-Expansion
Bearing Type
Ball Bearing
Maximum Operating Temperature
220
Collar OD (in)
2.6875
Mounted Unit Duty
Standard Duty
Duty Series
Standard
Bolt Center-to-Center Length (in)
5.6560
Housing Construction
One Piece
Retainer Type
Land Riding
Overall Length (in)
6.75
Measure Units
Inch
Bolt Size
0.5 in
Foot Height
0.563 in
Bolt Center-to-Center Length
5.656 in
Bearing Insert Coating
Phosphorus Nickel
Speed [Max]
1750 rpm
Backside Shield/Seal
Backside Shield included loose in box
Replaceable Insert
Yes
Bolt Size (in)
0.5
Special Features
Reduced Maintenance
Flange Type
2-Bolt Flange
Centerline to Front Face (in)
3.375
Housing Material
Stainless Steel
Operating Temperature [Max]
220 °F
Collar O.D.
2.688 in
Relubricatable
No
Overall Height to Inner Ring (in)
2.016
Misalignment Type
Static Only
Expansion
No
Overall Length
6.75 in
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Outer Ring Land Profile
Tapered
Angle of Misalignment
±2°
Bore Size
1.5 in
Housing Color
Silver
Pilot Configuration
No Pilot
Certifications
IP69K
Series
CRBFTS
Bore Size - Inch
1.5
Foot Height (in)
0.563
Centerline to Front Face
3.375 in
End Cap
Yes
Inch/Metric
Inch
Insert No.
PN-24T
Seal Type
Triple Lip Contact
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Bore Shape
Straight
Locking Type
Concentric
Housing Base
Solid
Platform
PN Gold
Shaft Dia.
1.5 in
Internal Clearance
Standard
Inner Race Heat Treat Method
Zone-Hardened
Overall Height to Inner Ring
2.016 in
Weight
4.83 LB
EAN or UPC
662461368947
