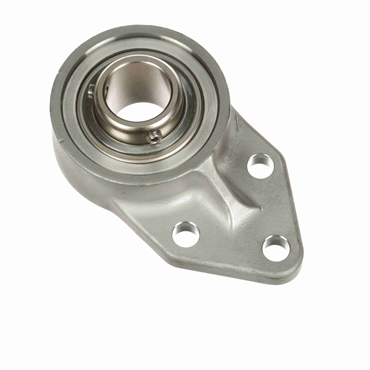

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
Solid construction with machined base was designed for minimal gaps and no fillers
USDA H1 complaint food grade grease
options
Corrosion Resistant - Reduced Maintenance - Lubed for Life
Insert No.
PN-12
Housing Construction
One Piece
Overall Height to End Cap
2.25 in
Inner Race Heat Treat Method
Zone-Hardened
Overall Height to Inner Ring (in)
1.344
Bearing Insert Coating
Phosphorus Nickel
Speed [Max]
3100 rpm
Angle of Misalignment
±2°
Housing Base
Solid
Housing Material
Stainless Steel
Inner Ring OD (in)
1.188
Locking Type
Set Screws
Maximum Operating Temperature
220
Housing Color
Silver
Housing Width (in)
2.5
Housing Width
2.5 in
Centerline to Front Face
0.719 in
Measure Units
Inch
Bore Size
0.75 in
Bore Shape
Straight
Overall Length
4.25 in
Bearing Type
Ball Bearing
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Relubricatable
No
Misalignment Type
Static Only
Internal Clearance
Standard
Expansion
No
Inch/Metric
Inch
Seal Type
Triple Lip Contact
Bolt Center-to-Center Length
1.5 in
Retainer Type
Land Riding
Operating Temperature [Max]
220 °F
Pilot Configuration
No Pilot
Outer Ring Land Profile
Tapered
Centerline to Front Face (in)
0.719
Flange Type
3-Bolt Flange Bracket
Inner Ring O.D.
1.188 in
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Overall Length (in)
4.25
Duty Series
Standard
Bore Size - Inch
0.75
Bolt Center-to-Center Length (in)
1.5000
Overall Height to Inner Ring
1.344 in
Replaceable Insert
Yes
Foot Height (in)
0.313
Foot Height
0.313 in
End Cap
Yes
Weight
1.3 LB
EAN or UPC
662461374450
